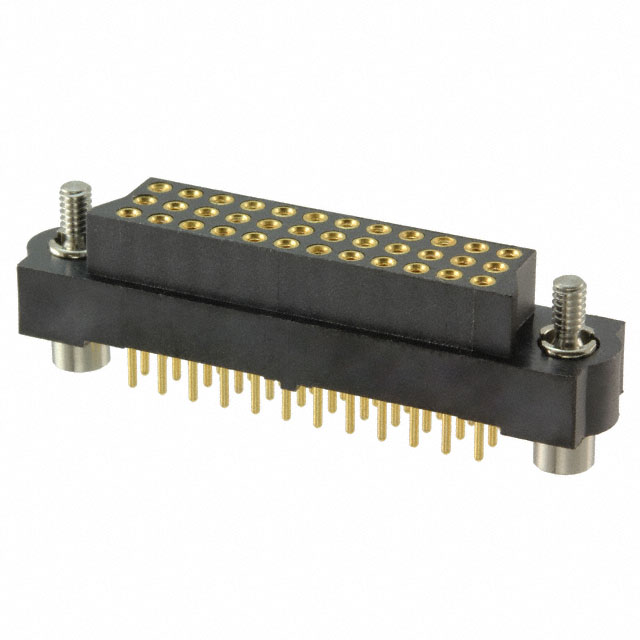

M83-LFT1F2N36-0000-000

$31.63

Description：CONN RCPT 36POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray

SKU:62c8ac2959f6 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 36POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：36
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：3
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.330" (8.38mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：10.65mm
Ingress Protection：-
Features：Jackscrews, Mating Flange, Mounting Flange
Current Rating (Amps)：-
Voltage Rating：120V

Download product information

M83-LFT1F2N36-0000-000

Overview

The M83-LFT1F2N36-0000-000 is a Datamate J-Tek series connector receptacle manufactured by Harwin. It features a 3-row configuration with 36 positions and a 2 mm pitch. Designed for through-hole termination, the housing is constructed from black polyamide (PA). The contacts are gold-plated phosphor bronze sockets compatible with 24-28 AWG wire crimping. Rated for 3 A current and 120 V voltage, it operates within a temperature range of -55°C to +125°C.
