Product Detailed Parameters
- Description：CONN RCPT 60POS 0.079 GOLD PCB
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：60
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.330" (8.38mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：10.65mm
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Mounting Flange
- Current Rating (Amps)：-
- Voltage Rating：120V
Download product information
Overview

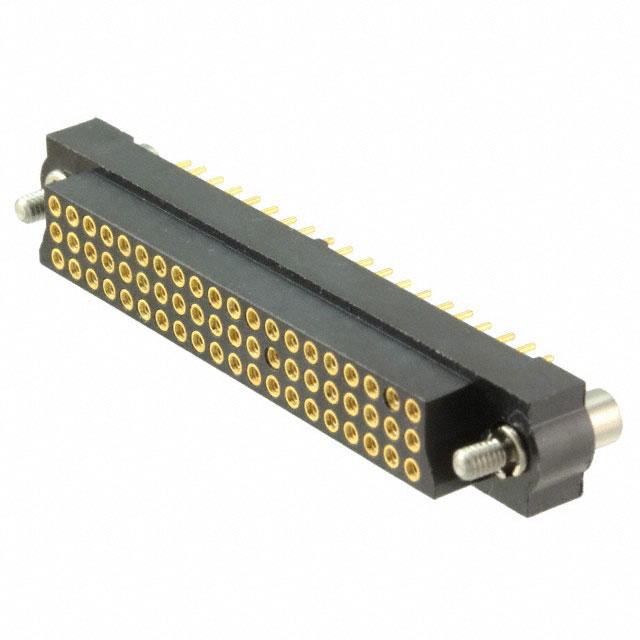

The Harwin M83-LFT1F2N60-0000-000 is a 60-position female socket receptacle from the Datamate J-Tek series. It features a 2 mm pitch and three rows of contacts. The connector supports a voltage rating of 120V and a current rating of 12A. Contacts are made of beryllium copper with gold plating. The housing is constructed from PPS material, rated for operation between -55°C and 125°C. Termination is achieved via straight through-hole solder pins.
Feature Summary
- Utilizes Datamate J-Tek interlocking design for secure board-to-board connections
- Gold-plated beryllium copper contacts ensure reliable signal transmission
- High-density 60-pin configuration in a compact three-row layout
Applications
- Industrial control systems requiring robust interconnects
- Test and measurement equipment interfaces
- Automotive electronics modules
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm termination style and contact finish. Ensure compatibility with mating male headers from the same Datamate J-Tek family. Check for RoHS compliance status if required by project specifications. Confirm that the through-hole solder pin length matches the target PCB thickness requirements.
Selection Notes
Select this component when high-density connectivity is required within a limited footprint. The 2 mm pitch allows for significant pin counts while maintaining manageable board space. The 12A current rating supports moderate power distribution needs alongside signal lines. Consider the operating temperature range to ensure suitability for the intended environmental conditions.
Part Context
This part belongs to the Datamate J-Tek series, known for its ruggedized interlocking connectors. The series offers various configurations including headers, sockets, and wire harnesses. The M83 prefix indicates a specific header or socket assembly variant within the broader product line.
Replacement Considerations
- M83-LML3M7N60-0000-000
FAQ
What is the contact material used in this connector?
The contacts are manufactured from beryllium copper alloy.
Does this connector support through-hole mounting?
Yes, it features straight solder pins designed for through-hole installation on printed circuit boards.
