Product Detailed Parameters

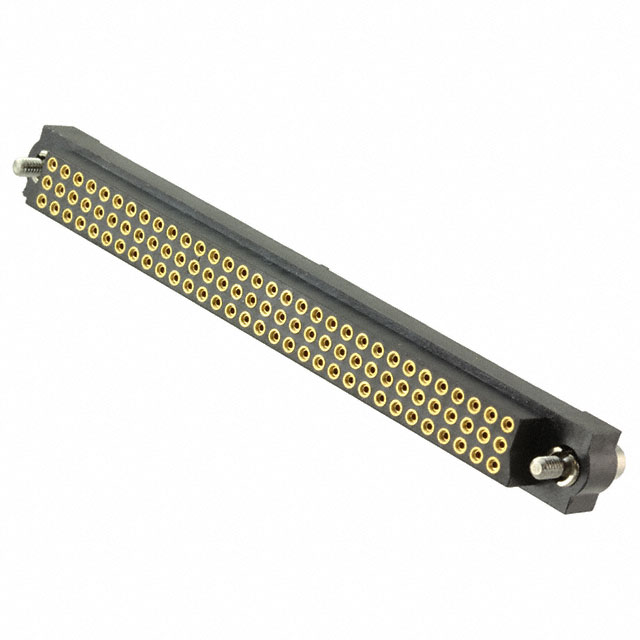

- Description：CONN RCPT 96POS 0.079 GOLD PCB
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：96
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.330" (8.38mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：10.65mm
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Mounting Flange
- Current Rating (Amps)：-
- Voltage Rating：120V
Download product information
Overview
The M83-LFT1F2N96-0000-000 is a Datamate J-Tek header and wire housing manufactured by Harwin Inc. It features a 96-position configuration with three rows and a 2 mm pitch. Designed for through-hole mounting, this connector utilizes crimp termination for contact attachment. The contacts are female sockets rated for 24-28 AWG wire gauges. Constructed with beryllium copper contacts, the component operates within a temperature range of -55°C to +125°C.
Feature Summary
- Datamate J-Tek series interconnect system
- Three-row shrouded header design
- Crimp termination for secure wire attachment
- Female socket contact type
Applications
- High-density PCB-to-wire harness connections
- Industrial control panel wiring
- Data acquisition systems requiring multiple signal lines
- Automotive electronic modules
Procurement Notes
Verify that the specific part number matches the required 96-position, 3-row configuration. Confirm compatibility with 24-28 AWG wire gauges for proper crimping. Ensure the application environment stays within the specified -55°C to +125°C operating temperature range. Check for any specific RoHS compliance requirements if applicable to your region.
Selection Notes
Select this component when high pin density is required in a compact footprint. The 2 mm pitch allows for significant I/O count per unit area. Consider the crimp termination method for reliable long-term connections compared to solder-only options. Evaluate the need for jackscrews or latching mechanisms if vibration resistance is critical for the installation.
Part Context
This part belongs to the Harwin Datamate J-Tek family, known for robust performance in demanding environments. The J-Tek line offers various configurations including headers, housings, and cable assemblies. This specific model serves as a male counterpart interface point for mating with compatible female connectors or cable assemblies.
Replacement Considerations
Direct substitutes may include other Harwin Datamate J-Tek headers with identical 96-pin, 3-row, 2mm pitch specifications. Verify contact material and current ratings match before substitution. Cross-referencing with distributor databases for equivalent part numbers is recommended.
