M83-LFT2F2N27-0000-000

Overview

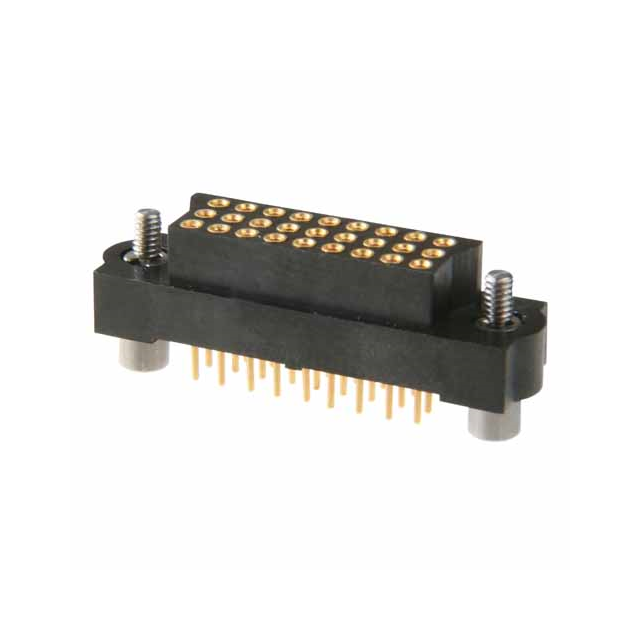

The Harwin M83-LFT2F2N27-0000-000 is a Datamate J-Tek series header connector featuring 27 positions arranged in a 3-row configuration. It utilizes a 2.00mm (0.079 inch) pitch and employs vertical through-hole termination with a 3mm tail length. The assembly includes female contacts designed for crimping to 22 AWG wire, finished with gold plating. Hexagonal slotted jackscrews are integrated for secure mating retention.

Feature Summary

• Integrates hexagonal slotted jackscrews for positive mechanical locking during connection
• Features gold-plated female contacts optimized for reliable signal transmission
• Supports direct crimp termination onto specified wire gauges without additional housings

Applications

• High-reliability industrial control systems requiring secure board-to-wire connections
• Aerospace and defense electronics demanding robust mechanical retention
• Test and measurement equipment interfaces needing frequent mating cycles

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm jackstyle type and contact finish. Ensure compatibility with mating receptacles from the same Datamate J-Tek family. Confirm that the 3mm tail length aligns with the target PCB thickness and clearance requirements before finalizing procurement orders.

Selection Notes

Select this component when a vertical orientation with integrated jackscrews is required for 27-channel applications. The 3-row layout maximizes density while maintaining serviceability. Consider the 22 AWG wire gauge constraint for harness design. This part serves as a male header counterpart to female receptacle assemblies within the standardized Datamate ecosystem.

Part Context

This connector belongs to the Datamate J-Tek line, engineered for high-density interconnects in harsh environments. The series is characterized by its modular design, allowing mixed row configurations and various termination styles. The J-Tek variant specifically emphasizes durability and ease of assembly for critical infrastructure applications.

Replacement Considerations

Direct substitutes include other Harwin Datamate headers with identical 27-position, 3-row, vertical, and jackscrew specifications. Verify pin count, pitch, and termination method match exactly. Cross-model generic features do not guarantee interchangeability; consult the official cross-reference guide for validated alternatives.
