M83-LFT2F2N60-0000-000

Overview

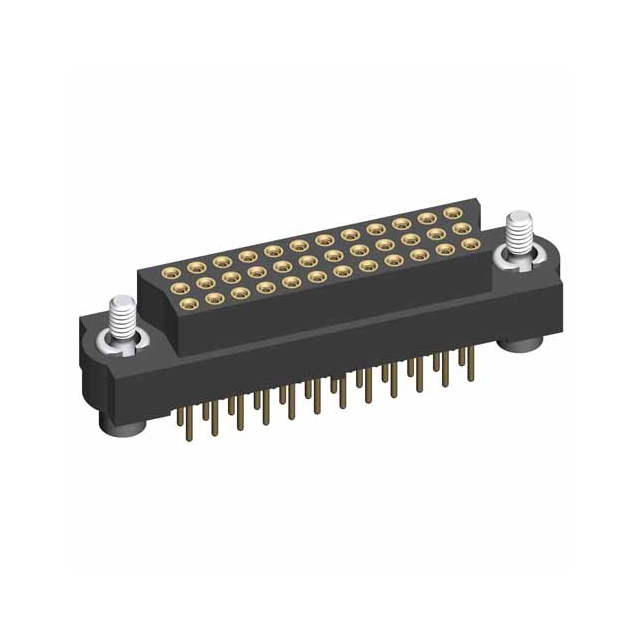

The M83-LFT2F2N60-0000-000 is a 60-position, three-row female receptacle from the Harwin Datamate J-Tek series. It features a 2 mm pitch and is designed for board-to-board connections. The connector supports a voltage rating of 120 V and a current capacity of 12 A per contact. Contacts are made of beryllium copper with gold plating. The housing is constructed from PPS material, providing thermal stability within an operating temperature range of -55°C to 125°C. It utilizes through-hole vertical mounting with solder termination.

Feature Summary

• Three-row female socket configuration for high-density interconnects
• Gold-plated beryllium copper contacts ensure reliable signal transmission
• PPS housing provides structural integrity and thermal resistance

Applications

• Board-to-board interconnection systems
• Industrial control modules requiring robust connectivity
• Electronic assemblies needing high-density signal routing

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Harwin documentation. Confirm that the specific suffix matches the required pin count and orientation. Ensure compatibility with mating headers regarding pitch and row configuration. Check for RoHS compliance status if environmental regulations apply to the assembly. Validate that the through-hole termination method aligns with the printed circuit board manufacturing process.

Selection Notes

Select this component when a 60-position, three-row female connector is required for vertical board-to-board applications. The 2 mm pitch allows for moderate density without excessive footprint constraints. Consider the 12 A current rating and 120 V voltage limit to ensure electrical safety margins. Verify that the through-hole mounting style suits the PCB design capabilities. Evaluate the -55°C to 125°C temperature range against operational environmental conditions.

Part Context

This receptacle belongs to the Datamate J-Tek family, known for compact rectangular connectors. The series offers various configurations including different row counts and termination styles. This specific model represents a standard vertical female variant. It is designed to mate with corresponding male headers in the same series. The product line emphasizes reliability in demanding electronic environments.

Replacement Considerations
