Product Detailed Parameters

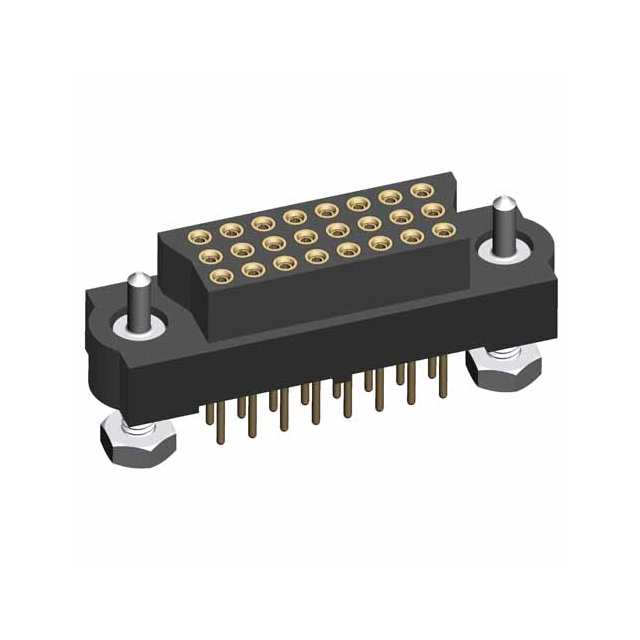

- Description：DATAMATE J-TEK 3-ROW FEMALE VERT
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：96
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.328" (8.33mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：10.65mm
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Mounting Flange
- Current Rating (Amps)：-
- Voltage Rating：120V
Download product information
Overview
The M83-LFT2FHN96-0000-000 is a Datamate J-Tek series cable assembly manufactured by Harwin. It features a 3-row female connector configuration with 96 positions, utilizing a 2 mm pitch. The unit employs crimp termination for 22 AWG wire gauges and includes hexagonal slotted jackscrews for secure mating. Designed for high-reliability applications, it operates within a temperature range of -55°C to +125°C and supports a current rating of 3 A with a voltage rating of 120 V.
Feature Summary
- High-density interconnect solution with 96 positions in a compact 3-row layout
- Secure mechanical locking via integrated hexagonal slotted jackscrews
- Robust environmental performance suitable for extreme temperature conditions
- Dedicated power-to-board design ensuring stable electrical connections
Applications
- Industrial control systems requiring high pin count connectivity
- Aerospace and defense electronic assemblies
- Medical equipment internal wiring harnesses
- Automotive electronics and heavy machinery interfaces
Procurement Notes
Verify the specific ordering suffix to confirm jack-screw inclusion and contact plating specifications. Ensure compatibility with corresponding male headers from the Datamate J-Tek family. Confirm that the 22 AWG wire gauge requirement aligns with system design constraints before finalizing procurement orders.
Selection Notes
Select this component when a high-pin-count, vertically oriented female cable assembly is required. The 2 mm pitch allows for dense packaging while maintaining reliable signal integrity. Consider the jackscrew feature if vibration resistance and secure mating are critical operational requirements for the target application environment.
Part Context
This part belongs to the Datamate J-Tek product line, known for its ruggedized rectangular connector solutions. The M83 prefix indicates a specific variant within the broader Harwin connector portfolio, focusing on high-reliability interconnects for demanding industrial and commercial sectors.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Cross-reference with other Harwin Datamate J-Tek 3-row female assemblies only if pin count, pitch, and termination style match exactly.
