Product Detailed Parameters

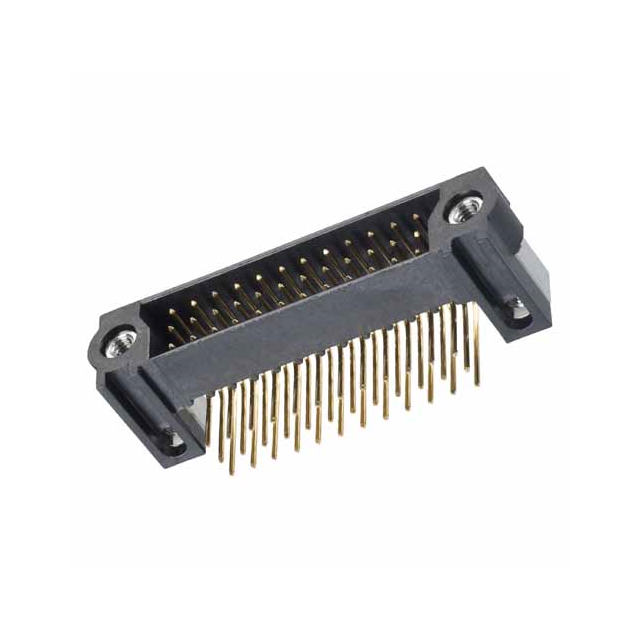

- Description：CONN HEADER R/A 48POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：48
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.303" (7.70mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：800V
Download product information
Overview
The M83-LML3M1N48-0000-000 is a Datamate J-Tek series header connector manufactured by Harwin. It features a 3-row, 48-position male pin configuration with a 2.00mm pitch. The component utilizes a horizontal surface mount (PC tail) termination style and includes jackscrews for secure mating. Rated for 3A current and 120V voltage, this shrouded connector is designed for high-reliability applications requiring robust mechanical retention.
Feature Summary
- Shrouded design prevents misalignment during insertion
- Integrated jackscrew mechanism ensures secure locking
- Horizontal PCB tail facilitates compact board layouts
Applications
- Industrial control systems
- Medical equipment interconnects
- Automotive electronics modules
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm pin count and orientation. Confirm RoHS compliance status through the manufacturer's latest certification documents. Check for obsolescence notices as distribution channels may vary. Ensure compatibility with corresponding female housings and jack screw accessories before procurement.
Selection Notes
Select this component when a high-density, mechanically locked connection is required. The 3-row layout optimizes space efficiency on printed circuit boards. Verify that the 2.00mm pitch aligns with the system's wiring harness requirements. Consider the horizontal mounting profile for clearance constraints in enclosed assemblies.
Part Context
This part belongs to the Datamate M83 series, characterized by high-reliability performance and mixed pitch capabilities. The J-Tek sub-series emphasizes durability in harsh environments. It serves as a critical interconnect solution within Harwin's broader portfolio of precision connectors for demanding industrial sectors.
Replacement Considerations
- M83-LMT1M2N60-0000-000
FAQ
What is the contact current rating?
The connector is rated for 3A.
Does this header include jackscrews?
Yes, the model designation indicates the inclusion of jackscrews for secure mating.
