Product Detailed Parameters

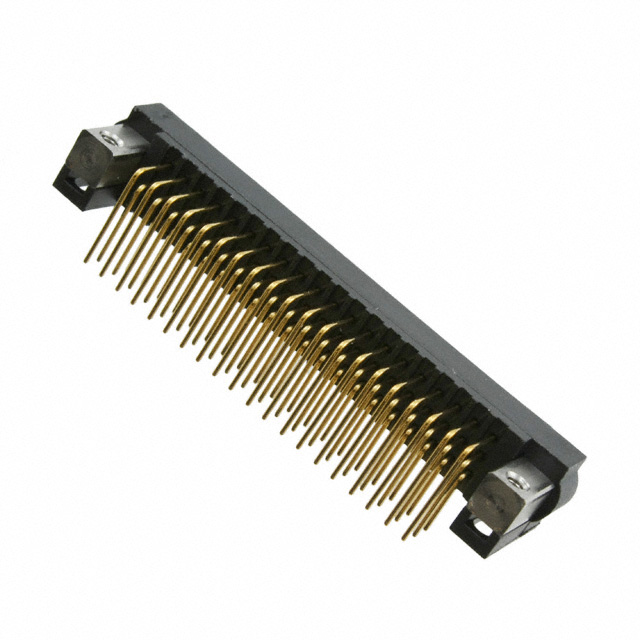

- Description：CONN HEADER R/A 60POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：60
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.303" (7.70mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：800V
Download product information
Overview
The Harwin M83-LML3M1N60-0000-000 is a Datamate J-Tek 3R header and wire housing assembly. It features a vertical through-hole mounting configuration with a 3mm tail length. The component provides 60 contacts in a shrouded design, utilizing gold-plated terminals for reliable signal transmission. This specific part number represents the female connector housing intended for mating with corresponding male pins.
Feature Summary
- Vertical printed circuit board mounting orientation
- Shrouded housing design for secure pin alignment
- Gold-plated contact surfaces for corrosion resistance
Applications
- Industrial control systems requiring high-density interconnects
- Automotive electronics harnesses
- Medical device internal wiring assemblies
Procurement Notes
Verify the exact suffix against the official Harwin datasheet to ensure correct tail length and contact gender. Confirm RoHS compliance status and material specifications prior to finalizing procurement orders. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and manufacturing lead times.
Selection Notes
Select this component when a vertical, high-pin-count connection is required within compact spaces. Ensure the mating counterpart matches the Datamate J-Tek 3R series specifications. Evaluate the 3mm tail dimension against PCB thickness requirements to guarantee proper solder joint formation and mechanical stability during operation.
Part Context
This component belongs to the Datamate J-Tek 3R family, designed for robust connectivity in demanding environments. The series offers various configurations including different pin counts and orientations. This specific variant focuses on providing a stable vertical interface for complex circuit board assemblies.
Replacement Considerations
Consult the official Harwin cross-reference guide for verified substitute part numbers. Ensure any alternative maintains identical pin count, pitch, and mounting style compatibility.
