M83-LML3M1N96-0000-000

Overview

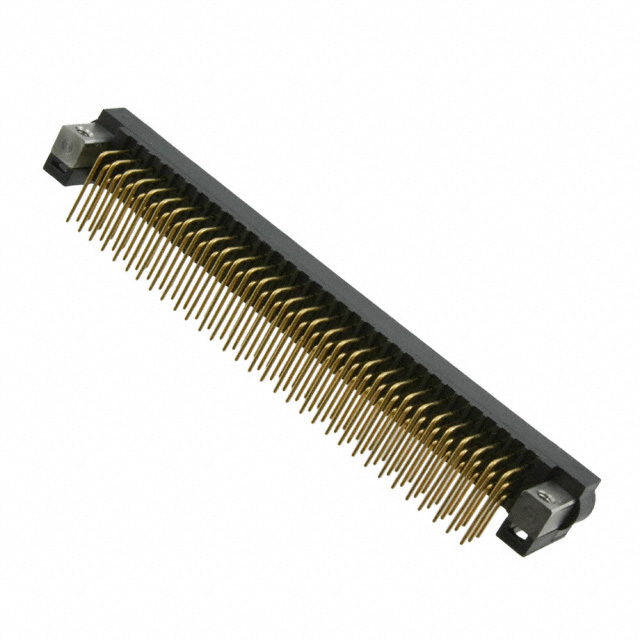

The Harwin M83-LML3M1N96-0000-000 is a Datamate J-Tek header and wire housing component designed for high-reliability interconnect applications. It features a shrouded, right-angle through-hole mounting style with solder pin termination. The connector supports 96 positions arranged in a 3-row configuration with a 2 mm pitch. It utilizes male pin contacts and includes internal threaded jacks screws for secure mating. The unit operates within a temperature range of -55°C to +125°C, rated for 3 A current and 120 V voltage.

Feature Summary

• Shrouded design provides alignment and protection for the contact array
• Internal threaded jackscrews ensure robust mechanical retention during mating
• Right-angle through-hole termination facilitates PCB layout flexibility
• Male pin contact type ensures compatibility with corresponding female housings

Applications

• Industrial control systems requiring reliable signal transmission
• Test and measurement equipment interfaces
• Automotive electronics assemblies
• Medical device interconnections

Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm exact pin count, row configuration, and jack screw type. Ensure the required operating temperature range and current ratings align with the system design specifications before finalizing procurement orders.

Selection Notes

Select this component when a high-density, right-angle header with secure locking mechanisms is required. The 2 mm pitch allows for compact board designs while maintaining adequate spacing. Consider the through-hole mounting requirement and verify that the PCB footprint matches the specified dimensions for proper installation and soldering.

Part Context

This part belongs to the Datamate J-Tek series by Harwin, known for its ruggedness and reliability in demanding environments. The M83 prefix indicates the specific connector family, while the detailed suffix defines the unique physical and electrical characteristics of this 96-position variant.

Replacement Considerations

Direct substitutes must match the 96 position count, 3-row layout, 2 mm pitch, and right-angle through-hole form factor. Verify that any alternative component offers compatible jack screw functionality and identical contact gender to ensure interchangeability without redesign.

FAQ

What is the contact gender for this connector?

The M83-LML3M1N96-0000-000 features male pin contacts.

Does this connector include jackscrews?

Yes, it is equipped with internal threaded jackscrews for secure mating.
