M83-LML3M5N60-0000-000

Overview

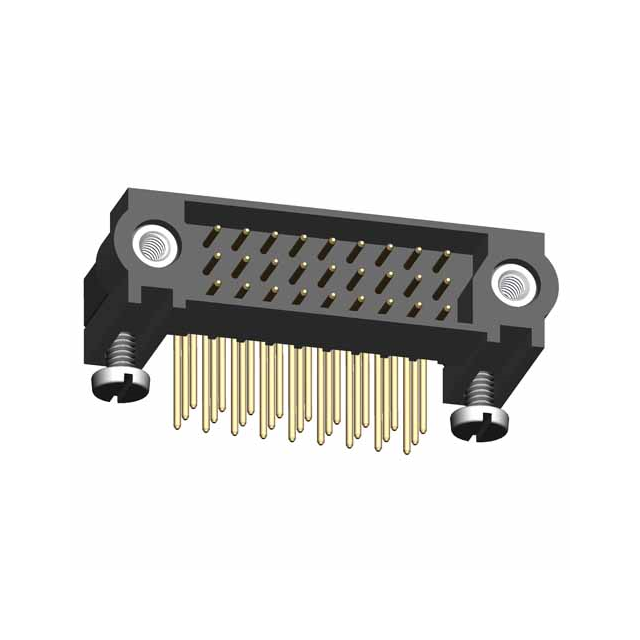

The M83-LML3M5N60-0000-000 is a Datamate J-Tek header from Harwin Inc., featuring 60 contacts arranged in a 3-row configuration with a 2 mm pitch. It supports board-to-board and wire-to-board systems, rated for 120V and 2.2A per contact. The connector utilizes gold-plated beryllium copper contacts housed in black PPS insulation. Designed for through-hole right-angle mounting, it operates within a temperature range of -55°C to 125°C.

Feature Summary

• High-density interconnect solution with 60 contacts in a compact three-row layout
• Robust mechanical design utilizing gold-plated beryllium copper contacts for reliable signal transmission
• Versatile connectivity supporting both board-to-board and wire-to-board applications

Applications

• Industrial control systems requiring high-density I/O connections
• Medical equipment needing reliable board-to-board interconnects
• Automotive electronics utilizing wire-to-board harnesses

Procurement Notes

Verify the specific suffix N60 against official Harwin documentation to confirm pin count and row configuration. Ensure compatibility with mating sockets from the same Datamate J-Tek series. Check for RoHS compliance status in the latest datasheet before integration into regulated environments.

Selection Notes

Select this component when a right-angle, through-hole header is required for dense signal routing. The 2 mm pitch allows for significant contact density within limited board space. Confirm that the 120V rating and 2.2A current capacity meet the specific circuit requirements of the application.

Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability rectangular connectors. The M83 series specifically denotes headers designed for robust mechanical engagement. This model provides a standardized interface for connecting flexible or rigid PCBs in demanding electronic assemblies.

Replacement Considerations

Direct substitutes must match the 60-pin, 3-row, 2mm pitch specification. Verify that any alternative maintains the right-angle through-hole footprint and compatible housing material. Cross-reference mating socket part numbers to ensure mechanical and electrical interoperability.
