M83-LML3M7N27-0000-000

Overview

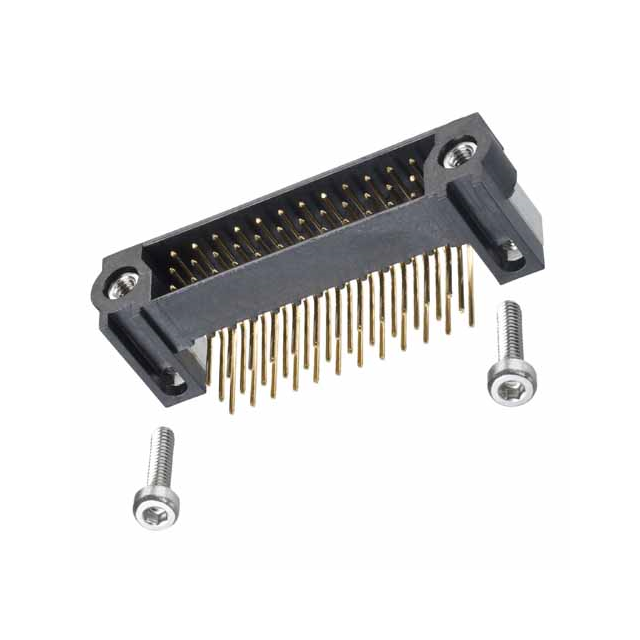

The M83-LML3M7N27-0000-000 is a Datamate J-Tek header from Harwin, featuring a 2.00mm pitch and three rows with 27 positions. It utilizes male pin contacts made of phosphor bronze with gold plating for reliable conductivity. The component employs a right-angle through-hole solder termination with a 4mm tail length for secure PCB mounting. Rated for 120V and 3A, it offers high-reliability performance in demanding environments.

Feature Summary

• High-reliability Datamate J-Tek series construction
• Gold-plated phosphor bronze male pin contacts
• Right-angle surface mount configuration

Applications

• Industrial control systems
• Automotive electronics
• Medical equipment

Procurement Notes

Verify the complete part number including suffixes to ensure correct contact count and orientation. Confirm RoHS compliance status via official datasheets before procurement. Check for obsolescence notices as this specific variant may have limited availability or replacement options.

Selection Notes

Select this component when a 27-position, three-row connector is required. Ensure the design accommodates the 4mm tail length for proper clearance. Verify that the mating socket matches the Datamate J-Tek standard for compatibility.

Part Context

This part belongs to the Harwin Datamate M83 series, designed for high-reliability applications. The series supports various configurations with consistent 2.00mm pitch across multiple row counts, ensuring standardized connectivity solutions.

Replacement Considerations

Check Harwin's official documentation for direct substitutes within the M83-LML3M7Nxx series. Consider variants with different pin counts if 27 positions are not strictly required.
