M83-LML3M7N36-0000-000

$25.64

Description：CONN HEADER R/A 36POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray

SKU:4a8efe65fff9 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 36POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：36
Number of Rows：3
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.157" (4.00mm)
Overall Contact Length：-
Insulation Height：0.303" (7.70mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A per Contact
Voltage Rating：800V

Download product information

M83-LML3M7N36-0000-000

Overview

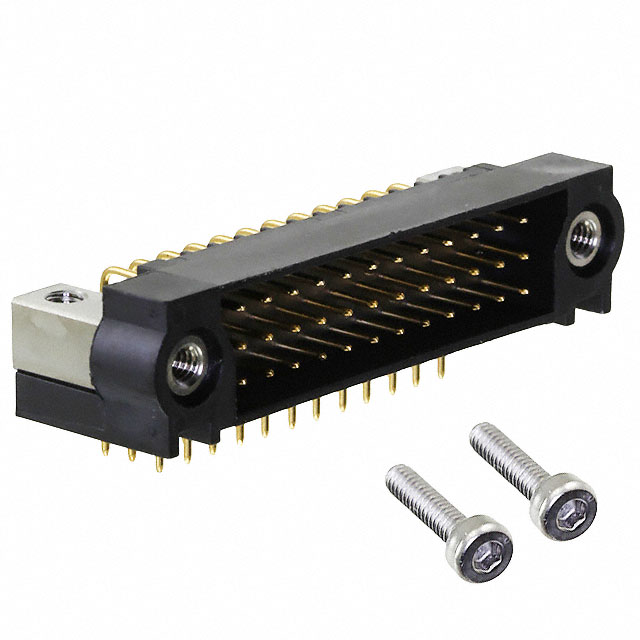

The M83-LML3M7N36-0000-000 is a Datamate J-Tek header manufactured by Harwin Inc. It features a 2.00 mm pitch and a 3-row configuration with 36 contacts. The component utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for through-hole mounting, it includes right-angle solder pins measuring 4 mm in length. The unit operates within a temperature range of -55°C to +125°C and supports a current rating of 3 A.

Feature Summary

Datamate J-Tek series interconnect system
Gold-plated phosphor bronze contacts
Right-angle through-hole termination

Applications

High-reliability industrial control systems
Automotive electronic modules
Aerospace communication equipment

Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to ensure correct pin count, row configuration, and contact plating specifications. Confirm that the right-angle orientation matches the PCB layout requirements. Cross-reference the RoHS compliance status with the latest manufacturer datasheet before finalizing procurement orders.

Selection Notes

Select this component when a robust, high-density connection is required for harsh environments. The 3-row layout maximizes contact density within a limited footprint. Ensure the 4 mm tail length accommodates the target PCB thickness and soldering process capabilities without causing mechanical stress or insufficient wetting.

Part Context

This part belongs to the Datamate J-Tek family, designed for demanding applications requiring secure locking mechanisms. The series is characterized by its high mating cycle durability and resistance to vibration. It serves as a critical interface solution in sectors where standard connectors may fail under extreme thermal or mechanical stress conditions.

Replacement Considerations

Direct substitutes must match the 2.00 mm pitch, 3x12 configuration, and right-angle through-hole form factor. Verify that alternative headers maintain identical gold plating thickness and phosphor bronze material properties to ensure electrical continuity and corrosion resistance are preserved.
