M83-LML3M7N60-0000-000

Overview

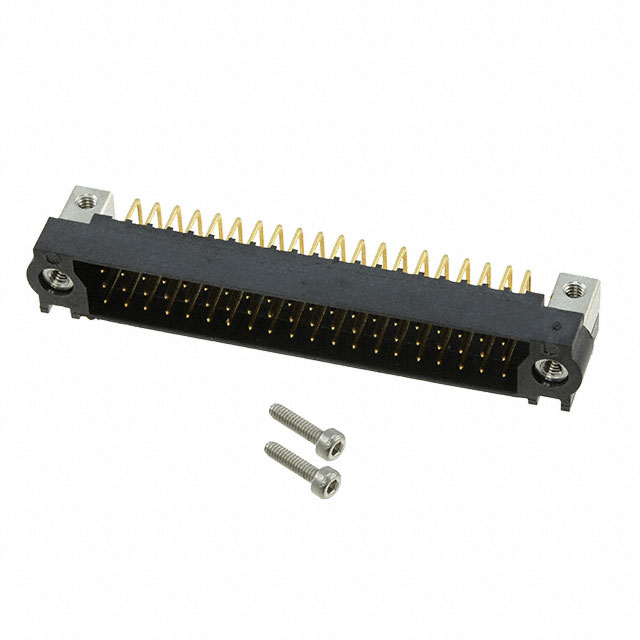

The Harwin M83-LML3M7N60-0000-000 is a Datamate J-Tek header featuring a 2.00 mm pitch and three rows of contacts. It provides 60 positions with male pin connectors, designed for right-angle through-hole mounting on printed circuit boards. The component utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. A 4 mm tail length is specified for the solder pins, supporting secure board attachment. This shrouded connector belongs to the high-reliability Datamate series, engineered for robust mechanical and electrical performance in demanding electronic assemblies.

Feature Summary

• Three-row shrouded header design for dense interconnection
• Gold-plated phosphor bronze contacts for corrosion resistance
• Right-angle through-hole termination for PCB integration
• Datamate J-Tek series compatibility for mating solutions

Applications

• Industrial control systems requiring high-density connections
• Automotive electronics harnesses
• Telecommunications equipment backplanes
• Medical device instrumentation interfaces

Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact configuration and tail dimensions. Ensure that the required mating housing and jack screws are sourced separately as they are not included with this header component. Cross-reference the RoHS compliance status with current regulatory requirements for your target market. Confirm that the 4 mm tail length aligns with your PCB thickness and assembly constraints before finalizing procurement orders.

Selection Notes

Select this component when a high-density, three-row connection is necessary within a limited footprint. The 2.00 mm pitch allows for significant I/O density compared to larger spacing options. Consider the right-angle orientation if vertical clearance is restricted or if specific cable routing angles are required. Verify that the 60-position count matches the exact signal and power requirements of the application without excessive unused pins.

Part Context

This part belongs to the Harwin Datamate J-Tek family, known for its modular design and high reliability. The M83 series specifically denotes headers compatible with the broader Datamate ecosystem. These connectors are engineered for harsh environments, offering superior vibration resistance and long-term durability. The J-Tek line supports various row counts and contact configurations, making it suitable for complex electronic systems requiring robust interconnectivity.

Replacement Considerations

Direct substitutes must maintain the 2.00 mm pitch, three-row configuration, and 60-pin count. Compatible alternatives include other Harwin Datamate headers with identical mechanical dimensions and contact materials. Ensure any replacement part supports right-angle through-hole mounting and matches the 4 mm tail specification for proper PCB fit.
