M83-LML3M7N96-0000-000

Overview

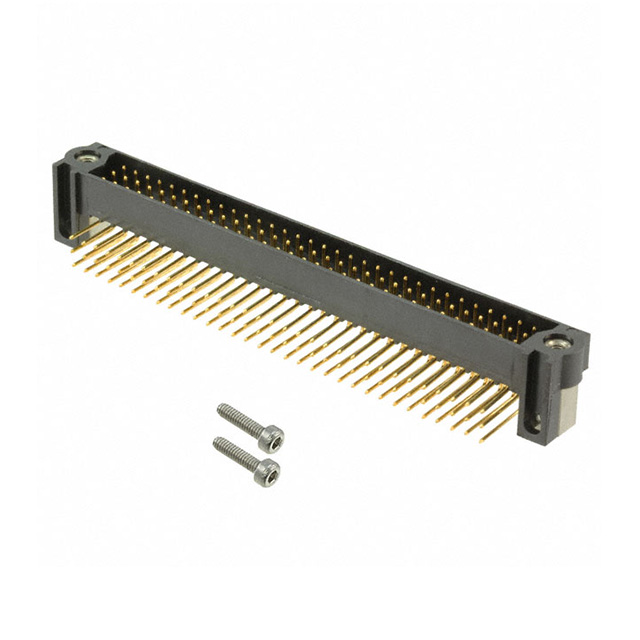

The Harwin M83-LML3M7N96-0000-000 is a Datamate J-Tek series header featuring 96 positions in a 3-row configuration with a 2 mm pitch. It utilizes male pin contacts and shrouded design for secure mating. The component supports through-hole right-angle installation with solder tail termination. Rated for 120 V and 3 A, it operates within a temperature range of -55 C to +125 C.

Feature Summary

• Shrouded 3-row header design ensures precise alignment during board-to-board or cable connections.
• Right-angle through-hole mounting facilitates compact vertical space utilization on printed circuit boards.
• Integrated jackscrew mechanism provides robust mechanical locking between mating connector pairs.

Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating, jack type, and housing material. Ensure compatibility with corresponding female connectors from the same Datamate J-Tek family. Confirm RoHS compliance status matches project requirements before finalizing procurement orders.

Selection Notes

Select this part when a high-pin-count, right-angle header is required for rigid PCB assembly. The 2 mm pitch offers a balance between density and spacing. Consider the 4 mm wire entry height for cable harness routing. Validate that the 3 A current rating meets the electrical load requirements of the target application circuit.

Part Context

This component belongs to the Datamate J-Tek product line by Harwin, designed for high-reliability applications. The series is known for its modular design and robust mechanical latching systems. It serves as a standard interconnect solution in demanding environments where vibration resistance and signal integrity are critical priorities.

Replacement Considerations

Direct substitutes must match the 96-position count, 3-row layout, and 2 mm pitch. Verify identical right-angle orientation and through-hole termination style. Cross-reference internal threaded versus hexagonal slotted jack options if mechanical retention differences are required for the assembly process.

FAQ

What is the contact type for this header?

The M83-LML3M7N96-0000-000 features male pin contacts designed to mate with female sockets.

Does this connector include jackscrews?

Yes, the description indicates the inclusion of jackscrews for secure mechanical locking between mating halves.
