M83-LMT1M2N27-0000-000

Overview

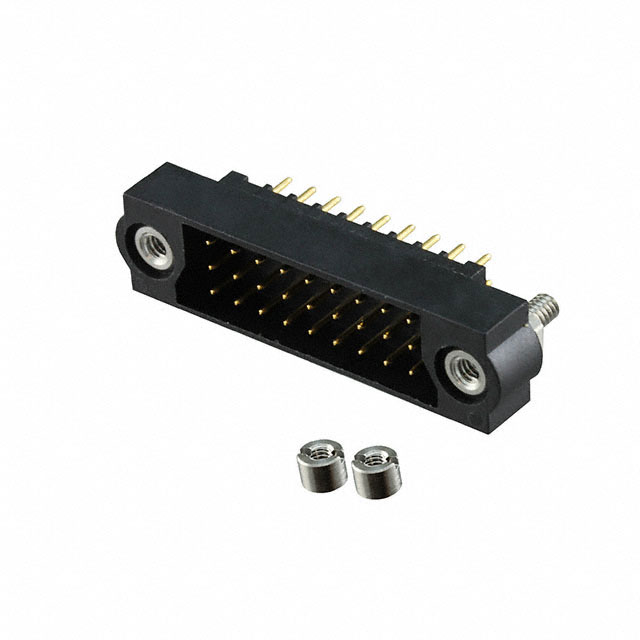

The Harwin M83-LMT1M2N27-0000-000 is a Datamate J-Tek board connector featuring 27 male contacts arranged in two rows. It utilizes a 2 mm pitch and employs straight solder terminals for vertical PCB mounting. The component includes internal threaded jackscrews for secure mating retention.

Feature Summary

• Integrates internal threaded jackscrews to ensure positive mechanical locking during connection.
• Utilizes gold-plated phosphor bronze contacts to provide reliable signal transmission and corrosion resistance.
• Employs a high-reliability PPS housing designed for robust performance in demanding environments.

Applications

• Industrial control systems requiring secure interconnects
• Test and measurement equipment interfaces
• Automotive electronics assemblies

Procurement Notes

Verify the specific contact configuration and jack screw type against the official datasheet before procurement. Ensure compatibility with mating female connectors within the Datamate J-Tek series. Confirm that the straight solder tail dimensions align with the target PCB layout requirements.

Selection Notes

Select this part for applications necessitating a compact, high-density interconnect solution with secure locking mechanisms. The two-row male configuration suits vertical board-to-board connections where space efficiency and vibration resistance are critical design parameters.

Part Context

This component belongs to the Datamate J-Tek family, known for its high reliability and rugged design. The series supports various contact counts and termination styles, offering versatile connectivity options for industrial and commercial electronic applications requiring durable performance.

Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek headers with matching 2 mm pitch and 27-pin male configurations. Verify that alternative parts maintain identical jack screw specifications and terminal orientation for direct interchangeability.
