Product Detailed Parameters
- Description：CONN HEADER VERT 36POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：36
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.240" (6.10mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：120V
Download product information
Overview

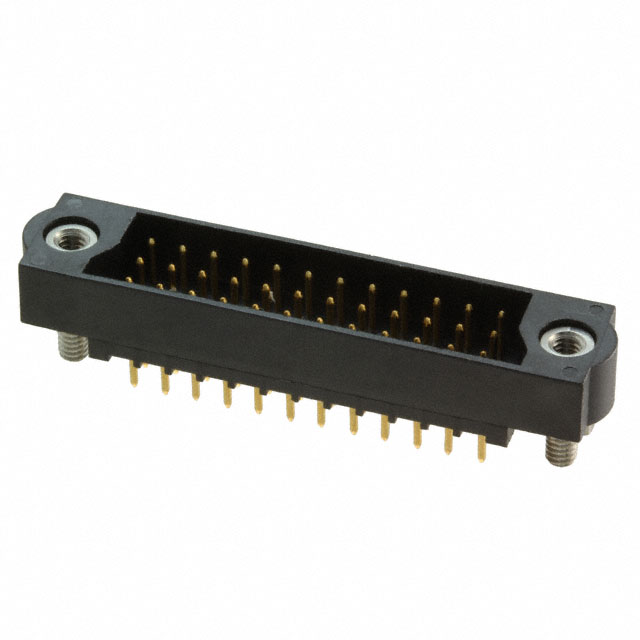

The Harwin M83-LMT1M2N36-0000-000 is a Datamate J-Tek board connector featuring 36 contacts arranged in three rows. It utilizes a 2 mm pitch and employs male pin contacts with gold plating for reliable signal transmission. The component is designed for vertical through-board mounting using solder pins, ensuring secure mechanical attachment to the PCB.
Feature Summary
- Datamate J-Tek series construction for high-reliability interconnects
- Vertical orientation with integrated jackscrew mounting system
- Gold-plated phosphor bronze contacts for corrosion resistance
Applications
- Industrial control systems requiring robust connections
- Medical equipment demanding high reliability
- Defense and aerospace electronic assemblies
Procurement Notes
Verify the specific revision status of the datasheet before integration, as manufacturing updates may occur. Confirm that the vertical mounting configuration aligns with the mechanical constraints of the target enclosure. Ensure compatibility with mating female connectors within the same Datamate family to maintain proper engagement and shielding integrity.
Selection Notes
Select this part when a vertical, shrouded header with jackscrew retention is required. The 3-row configuration supports higher density compared to single or dual-row alternatives. Verify that the PCB layout accommodates the vertical profile and the necessary clearance for the jackscrew nuts during assembly and operation.
Part Context
This component belongs to the Datamate J-Tek family, known for rugged performance in harsh environments. It complements other M83-series headers and cable assemblies, providing a standardized interface solution across various industrial and specialized sectors where vibration resistance and secure locking are critical.
Replacement Considerations
Direct substitutes include M83-LMT1M2N48-0000-000 (48-pin) or M83-LMT1M2N60-0000-000 (60-pin) for different contact counts. Horizontal variants such as M83-LML1M2N36-0000-000 offer alternative mounting orientations while maintaining identical electrical specifications.
