Product Detailed Parameters
- Description：CONN HEADER VERT 96POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：96
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.240" (6.10mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：120V
Download product information
Overview

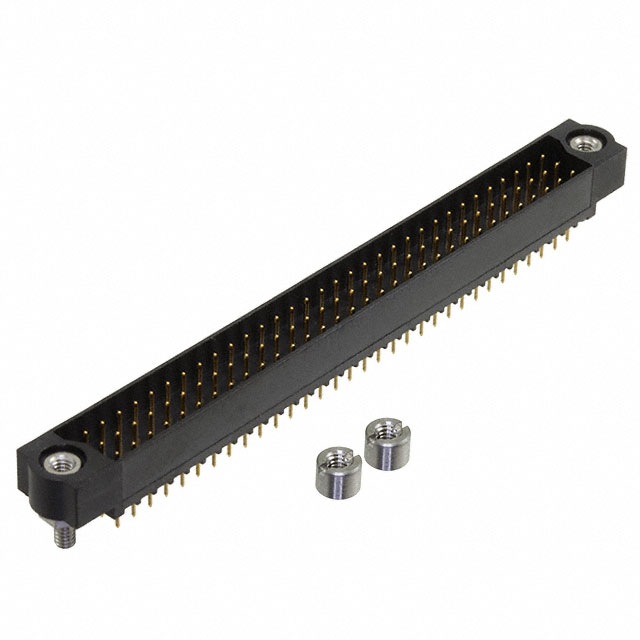

The M83-LMT1M2N96-0000-000 is a Datamate J-Tek header manufactured by Harwin Inc. It features a 96-position, 3-row male pin configuration with a 2 mm pitch. Designed for right-angle through-hole mounting, it utilizes solder pins for termination. The connector operates within a temperature range of -55°C to +125°C and supports a current rating of 3 A at 120 V.
Feature Summary
- Datamate J-Tek series shrouded design with internal threaded jackscrews for secure mating
- Male pin contacts arranged in a 3-row horizontal orientation
- Right-angle through-hole construction for PCB integration
Applications
- Industrial control systems requiring high-density interconnects
- Aviation and aerospace electronic equipment
- Defense communication hardware
- Medical critical electronic equipment
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm mechanical variations such as jack screw type or contact plating. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Confirm RoHS compliance status directly with the manufacturer before finalizing procurement orders.
Selection Notes
Select this component when a high-density 96-position connection is required in a compact form factor. The right-angle orientation facilitates space-constrained board layouts. Verify that the 2 mm pitch aligns with existing system requirements and that the 3 A current rating meets the application's electrical load specifications.
Part Context
This part belongs to the Datamate J-Tek line, designed for harsh environments including vibration and shock. It complements other M83-series headers and sockets, providing a robust solution for applications demanding reliable signal and power transmission in industrial, medical, and defense sectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin M83-series variants only if they share identical mechanical dimensions and electrical ratings.
