M83-LMT2M3N60-0000-000

Overview

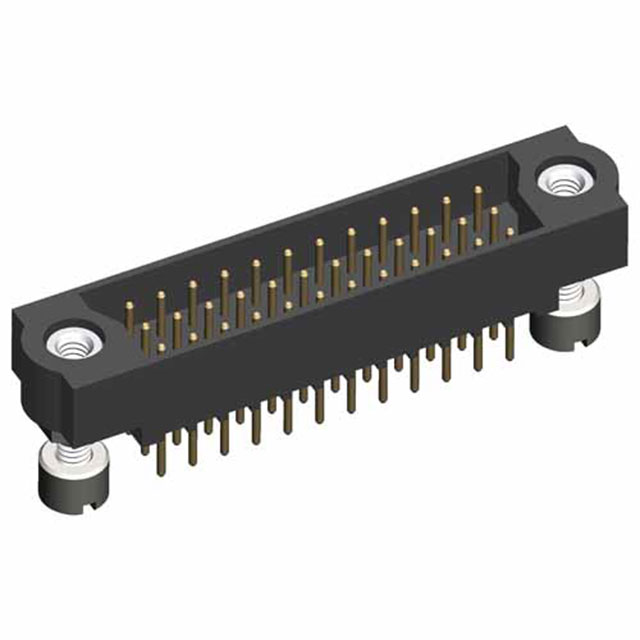

The M83-LMT2M3N60-0000-000 is a Datamate J-Tek series header manufactured by Harwin. It features a 2 mm pitch, three rows, and sixty contacts. The component utilizes male pin contacts made of phosphor bronze with gold plating. It is designed for through-hole vertical mounting with a solder tail length of 4.5 mm. The connector system supports board-to-board or wire-to-board applications.

Feature Summary

• Datamate J-Tek series interconnect system
• Vertical through-hole mounting configuration
• Gold-plated phosphor bronze male pin contacts

Applications

• Industrial control systems
• Medical equipment
• Aviation and defense electronics

Procurement Notes

Verify the specific datasheet version to confirm the exact solder tail length and jack screw compatibility. Ensure the mating connector matches the Datamate J-Tek standard. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.

Selection Notes

Select this part for high-density connections requiring robust mechanical retention via jack screws. The vertical orientation suits space-constrained PCB layouts. Verify that the contact current rating meets the circuit requirements and that the housing material is compatible with the assembly environment.

Part Context

This component belongs to the Harwin Datamate J-Tek family, known for rugged performance in harsh environments. The M83 prefix indicates a header variant within the broader interconnect portfolio. It complements matching socket connectors for secure board-to-board or cable assemblies.

Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek headers with identical 2 mm pitch, three-row configuration, and sixty positions. Verify that any alternative maintains the same vertical mounting style and jack screw interface for mechanical interchangeability.
