M8S24TCJ 112.000000

Overview

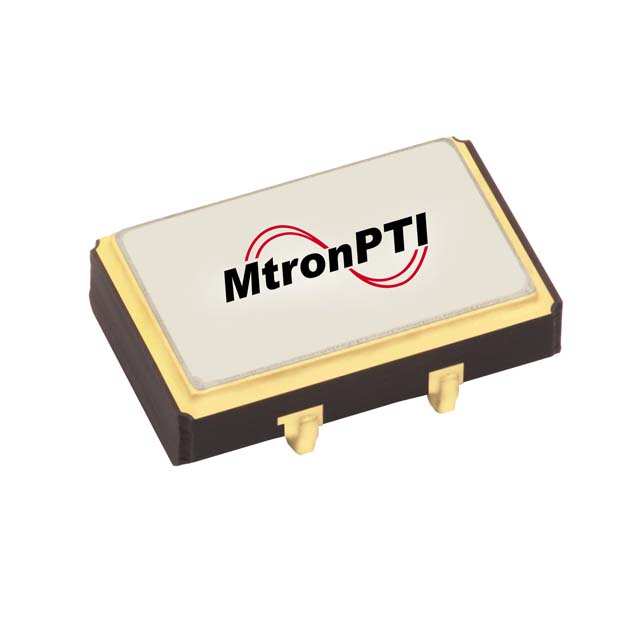

The M8S24TCJ 112.000000 is a standard HCMOS clock oscillator manufactured by MtronPTI, operating at a nominal frequency of 112 MHz. It utilizes a surface-mount J-lead ceramic package with a 5.08mm pitch and supports a supply voltage range of 3.0V to 3.6V. The device features tri-state control for enable/disable functionality and provides rise/fall times of approximately 7ns. Designed for industrial applications, it operates within a temperature range of -40°C to +85°C and offers frequency stability suitable for general timing requirements.

Feature Summary

• HCMOS output signal compatible with standard logic families
• Tri-state function allows for system-level enable and disable control
• Seam-sealed ceramic J-lead package ensures environmental durability

Applications

• Microprocessor and controller clock generation
• Industrial communication controllers
• Test and measurement equipment timing references

Procurement Notes

Verify the specific suffix codes against the manufacturer's current datasheet to confirm exact frequency tolerance and aging specifications. Ensure the ordering part number matches the required RoHS compliance status and package variant. Cross-reference the pinout configuration with your PCB layout to guarantee correct orientation during assembly.

Selection Notes

Select this component when a 112 MHz HCMOS clock source is required in a ruggedized ceramic package. Consider the tri-state capability if system power management or bus isolation is necessary. Verify that the 3.3V supply requirement aligns with your design's voltage rails and that the operating temperature range meets the environmental constraints of the target application.

Part Context

This model belongs to the M8S series of surface-mount oscillators from MtronPTI. The series is characterized by its J-lead ceramic construction, which provides superior mechanical strength compared to standard plastic packages. These oscillators are designed to replace through-hole components while offering improved high-frequency performance and reliability in demanding electronic environments.

Replacement Considerations

Direct substitutes include other MtronPTI models within the M8S family sharing identical pinouts and electrical characteristics. Verify compatibility with alternative manufacturers' J-lead ceramic oscillators by matching the footprint dimensions, pitch, and logical interface specifications.
