MA-2023

Power Line Filter Modules Overview

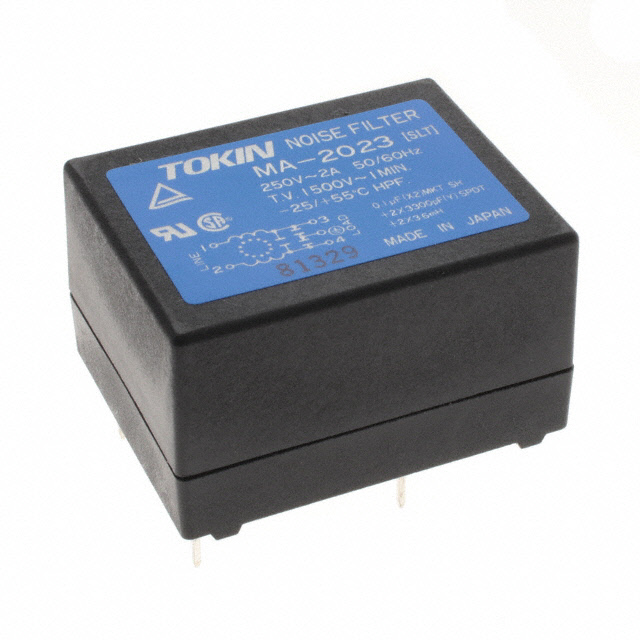

The KEMET MA-2023 is a single-phase EMC/EMI power line filter module designed for through-hole mounting. It features a rated voltage of 250V AC and 250V DC, with a current rating of 2A. The device utilizes PC pins for termination and operates within a temperature range of -25°C to +55°C. Key electrical specifications include a leakage current of 750 µA. The unit is housed in a plastic box enclosure and belongs to the MA series.

Power Line Filter Modules Feature Summary

• Single-stage filtering configuration for effective noise suppression
• Through-hole mounting design with PC pin termination
• Plastic box housing for component protection

Power Line Filter Modules Applications

• AC power line interference suppression
• Electronic equipment EMI mitigation
• Single-phase power supply filtering

Power Line Filter Modules Procurement Notes

Verify part status as obsolete before procurement planning. Confirm compatibility with existing PCB layouts due to specific through-hole pin spacing. Ensure replacement strategies account for discontinued availability. Validate thermal performance requirements against the specified operating temperature range during integration.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase filtering at 250V ratings. Consider the 2A current limit and 750 µA leakage current constraints. Evaluate space constraints regarding the plastic box dimensions. Verify that through-hole assembly processes align with manufacturing capabilities.

Power Line Filter Modules Part Context

The MA-2023 belongs to KEMET's MA series of power line filter modules. These components are engineered for electromagnetic compatibility in single-phase systems. The series provides standardized solutions for noise reduction in commercial and industrial electronic devices.

Power Line Filter Modules Replacement Considerations

The MA-2023 is listed as an obsolete product. No public confirmed substitute part numbers are available in the provided documentation. Alternative selection requires evaluating equivalent single-phase filters with matching 250V/2A specifications.
