MA06078

Overview

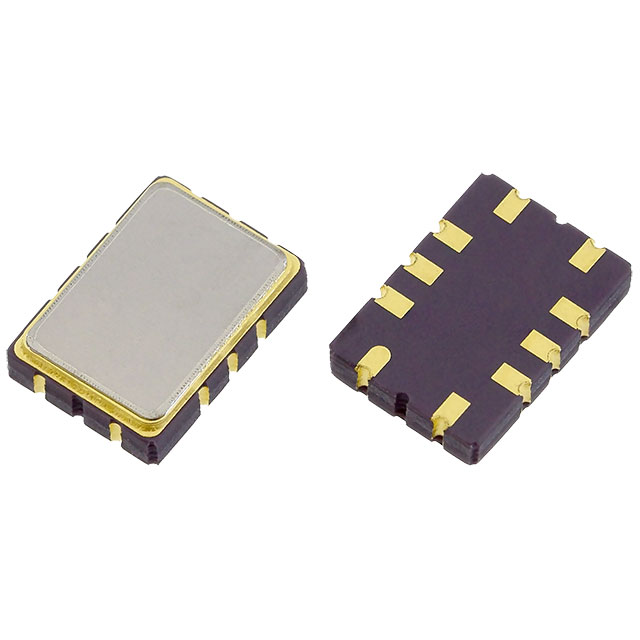

The MA06078 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd, designed for intermediate frequency applications in RF systems. Operating at a center frequency of 140 MHz, this component provides a bandwidth of 100 kHz and an insertion loss of 6 dB. It is housed in a compact 10-SMD, No Lead package, facilitating surface mount integration into space-constrained electronic designs.

Feature Summary

• Utilizes Surface Acoustic Wave technology for precise signal filtering
• Optimized for intermediate frequency processing in radio circuits
• Designed for surface mount assembly on printed circuit boards

Applications

• RF intermediate frequency filtering
• Wireless communication equipment
• Radio receiver front-ends

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and thermal characteristics before finalizing design integration. Ensure compatibility with standard reflow soldering profiles suitable for ceramic or metal SAW packages. Confirm RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a narrow 100 kHz bandwidth is required at 140 MHz. The low insertion loss supports efficient signal transmission. Evaluate PCB layout constraints against the 10-SMD footprint dimensions to ensure adequate clearance for surrounding components.

Part Context

This part belongs to Golledge Electronics' portfolio of passive RF components, which includes quartz crystals, oscillators, and filters. The manufacturer specializes in providing frequency control solutions for various industrial and consumer electronics markets.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching center frequency, bandwidth, and package type with alternative SAW filter manufacturers.
