MA06630

Overview

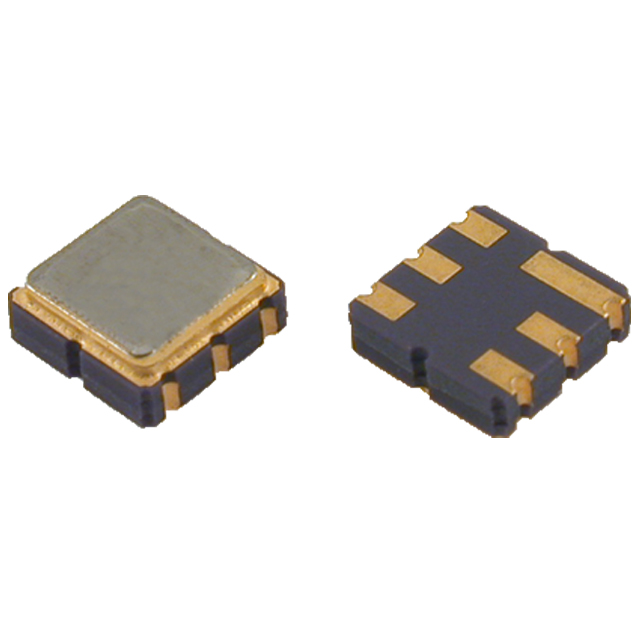

The MA06630 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 912.10 MHz. This component is designed for radio frequency signal processing applications, specifically functioning as an RF filter within receiver circuits. The device provides frequency selectivity for wireless communication systems operating in the vicinity of 912 MHz.

Feature Summary

• Surface Acoustic Wave technology implementation
• Dedicated receiver-side filtering capability
• Fixed center frequency operation at 912.10 MHz

Applications

• RF receiver front-end stages
• Wireless communication systems requiring 912 MHz band filtering
• Signal conditioning for superheterodyne receivers

Procurement Notes

Verify the specific datasheet version from Golledge Electronics to confirm mechanical dimensions and pinout configurations prior to integration. Ensure that the 912.10 MHz center frequency aligns with the target system's intermediate or radio frequency requirements. Confirm RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a SAW filter topology is required for the 912 MHz range. Consider the physical package constraints and thermal characteristics suitable for the intended PCB layout. Evaluate insertion loss and rejection specifications against system sensitivity requirements to ensure adequate signal integrity.

Part Context

This part belongs to Golledge Electronics' portfolio of passive RF components, which includes quartz crystals, oscillators, and filters. The manufacturer specializes in precision frequency control and signal filtering solutions for industrial and consumer electronics markets.
