MA07511

Overview

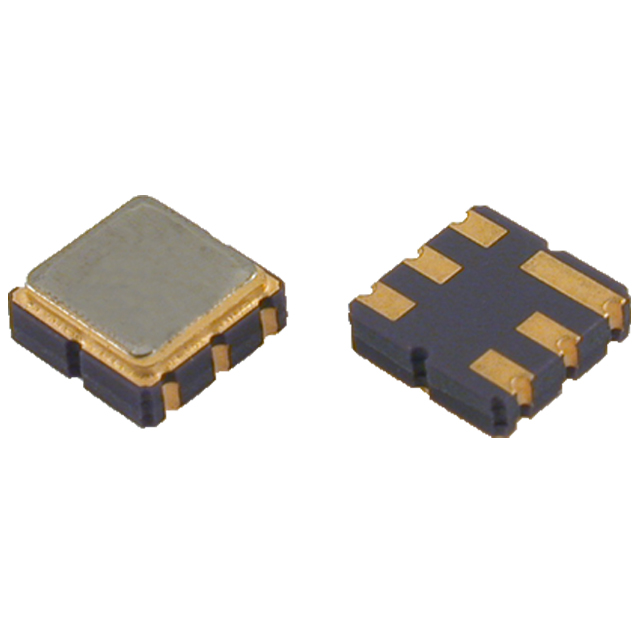

The MA07511 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 446 MHz with an 8 MHz bandwidth and provides insertion loss characteristics of approximately 4.5 dB. The component is designed for general-purpose RF applications and is supplied in an 8-SMD package configuration.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Optimized for 446 MHz center frequency operation
• Features an 8 MHz bandwidth specification

Applications

• General purpose RF signal processing
• Communication system front-end filtering
• RF module integration

Procurement Notes

Verify the specific datasheet version and exact electrical tolerances directly with Golledge Electronics or authorized distributors before procurement. Confirm that the 8-SMD package dimensions align with your PCB footprint requirements. Ensure the operating environment matches the specified temperature range to maintain performance stability.

Selection Notes

Select this component when a SAW filter solution is required for the 446 MHz band. Consider the 4.5 dB insertion loss impact on system gain budget. Evaluate the 8 MHz bandwidth against the required signal spectrum width. Compare physical size constraints against alternative filter technologies if space is limited.

Part Context

This part belongs to the Golledge Electronics SAW filter product line, distinct from their quartz crystals and oscillators. It serves as a passive RF component for frequency selection within communication hardware.
