MA08362

Overview

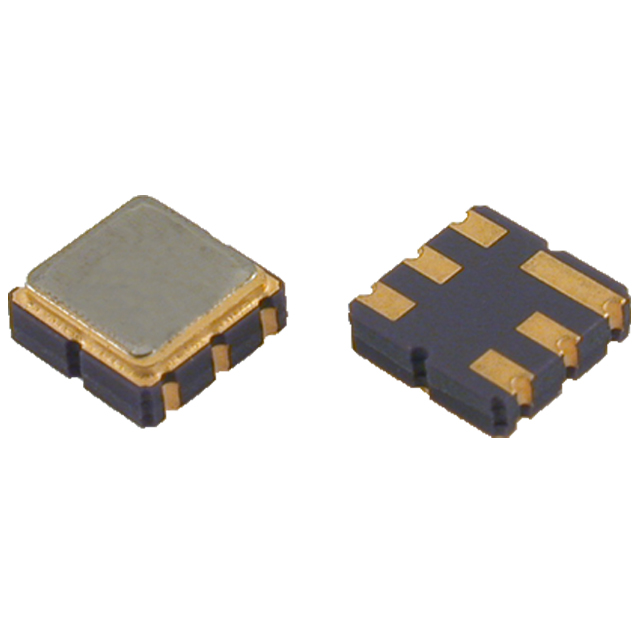

The MA08362 is a surface acoustic wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 428.835 MHz with a bandwidth of 5 MHz and an insertion loss of 3.6 dB. The component utilizes an 8-SMD, no-lead package configuration. Its physical dimensions are 3.80 mm in length and 3.80 mm in width. The device is RoHS compliant.

Feature Summary

• Surface acoustic wave technology for RF filtering
• Compact 8-SMD no-lead package design

Applications

• Wireless RF applications

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and pinout configurations before integration. Ensure the supplier provides documentation confirming RoHS compliance status. Cross-reference the part number with official Golledge Electronics records to validate authenticity and current production status.

Selection Notes

Select this component for applications requiring a 428.835 MHz SAW filter within a compact footprint. Consider the 3.6 dB insertion loss and 5 MHz bandwidth when designing matching networks. Verify that the 8-SMD no-lead package is compatible with the target PCB assembly process.

Part Context

This component belongs to the Golledge Electronics SAW filter product line. It is designed for wireless communication systems requiring precise frequency selection. The manufacturer specifies standard operating parameters for RF signal processing in compact electronic devices.

Replacement Considerations

No public substitute part numbers are confirmed.
