MA08949

Overview

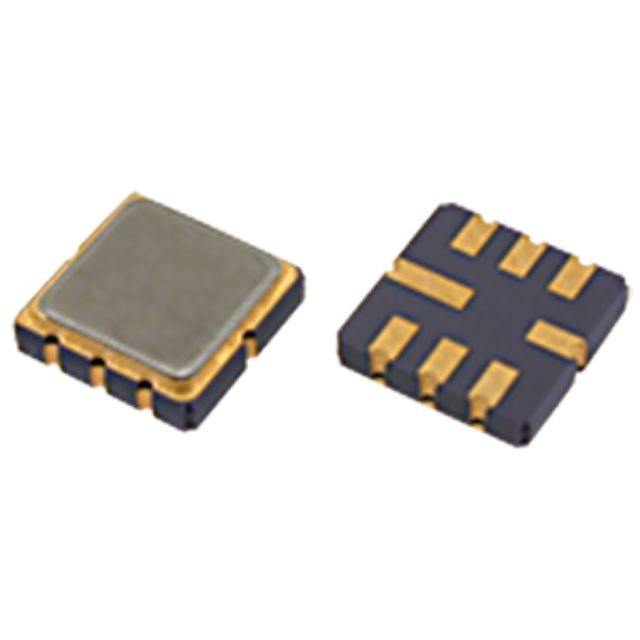

The MA08949 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates with a center frequency of 366.5 MHz and provides an insertion loss of 12.5 dB. The device features a bandwidth of 27 MHz and is housed in an 8-SMD surface-mount package.

Feature Summary

• Surface Acoustic Wave technology for RF filtering
• General-purpose design suitable for various applications
• Compact 8-SMD surface-mount form factor

Applications

• RF signal processing
• Communication systems
• Electronic equipment requiring bandpass filtering

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm exact electrical characteristics and mechanical dimensions. Ensure compatibility with your circuit requirements before procurement.

Selection Notes

Select this component based on the required 366.5 MHz center frequency and 27 MHz bandwidth. Confirm that the 12.5 dB insertion loss meets system specifications and that the 8-SMD package fits the PCB layout.

Part Context

This part belongs to Golledge Electronics Ltd's SAW filter product line, which includes various RF filters for communication and electronic applications. The company specializes in frequency control components such as crystals, oscillators, and RF filters.
