MA09368

Overview

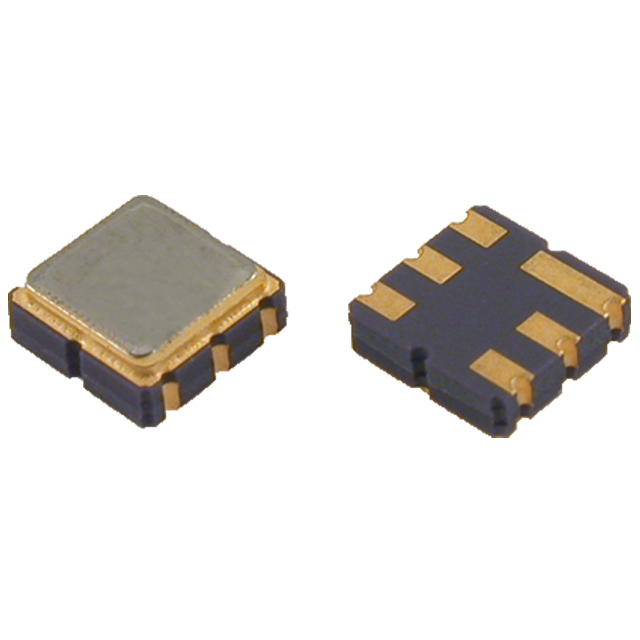

The MA09368 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 311.06 MHz with a bandwidth of 2 MHz and an insertion loss of 3 dB. The component utilizes a 6-SMD, No Lead package for surface mount assembly. Designed for wireless RF applications, it provides signal filtering capabilities within the specified frequency range.

Feature Summary

• Surface Acoustic Wave technology for RF filtering
• Optimized for wireless communication systems
• Compact leadless SMD footprint

Applications

• Wireless RF signal processing
• Communication equipment filtering
• RF front-end modules

Procurement Notes

Verify the exact center frequency of 311.06 MHz and the 2 MHz bandwidth against specific design requirements. Confirm the 3 dB insertion loss specification matches system link budget calculations. Ensure the 6-SMD no-lead package type is compatible with the intended PCB layout and soldering process. Cross-reference the manufacturer datasheet for detailed thermal and mechanical handling guidelines.

Selection Notes

Select this component when a SAW filter is required for the 311.06 MHz band. Consider the 3 dB insertion loss impact on signal strength. Evaluate the 6-SMD no-lead package for space constraints. Compare performance against alternative filters if stricter bandwidth or loss specifications are necessary for the application.

Part Context

This part belongs to Golledge Electronics' SAW filter portfolio. These components are engineered for high-frequency RF applications. The series offers compact solutions for wireless devices requiring precise frequency selection and interference rejection in small form factors.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
