MA09528

Overview

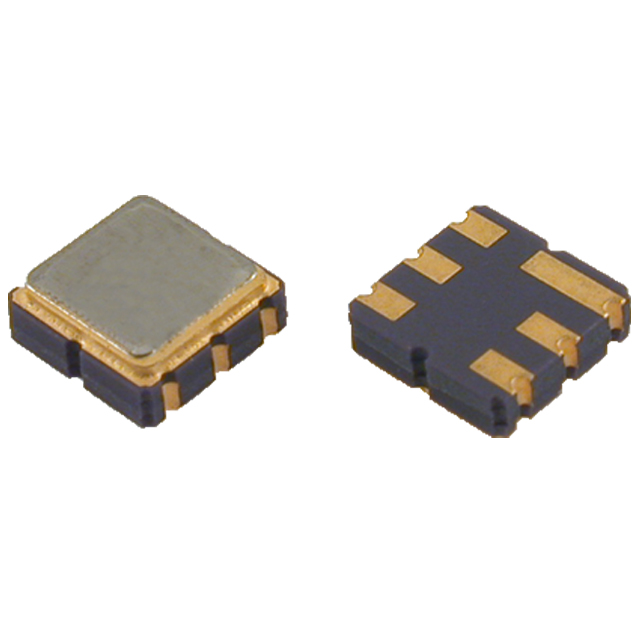

The MA09528 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 1090.0 MHz with a bandwidth of 12 MHz and an insertion loss of 5.3 dB. The component utilizes an 8-SMD, No Lead package for surface mount installation. It is RoHS compliant and lead-free.

Feature Summary

• Surface Acoustic Wave technology for RF filtering
• Compact 8-SMD no-lead package design
• RoHS compliant and lead-free construction

Applications

• Wireless RF applications requiring 1.09 GHz filtering
• Communication systems utilizing the specified frequency band

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm current production status and exact electrical tolerances. Ensure compatibility with the target circuit's impedance and frequency requirements before procurement.

Selection Notes

Select this component for applications requiring a SAW filter at 1090.0 MHz. Consider the 12 MHz bandwidth and 5.3 dB insertion loss against system specifications. The 8-SMD package dictates the PCB layout footprint.

Part Context

This part belongs to Golledge Electronics Ltd's portfolio of passive components, specifically within their SAW filter and resonator lines. It serves as a specialized RF solution for wireless communication frequencies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
