MAAD-011021-TR0500

Overview

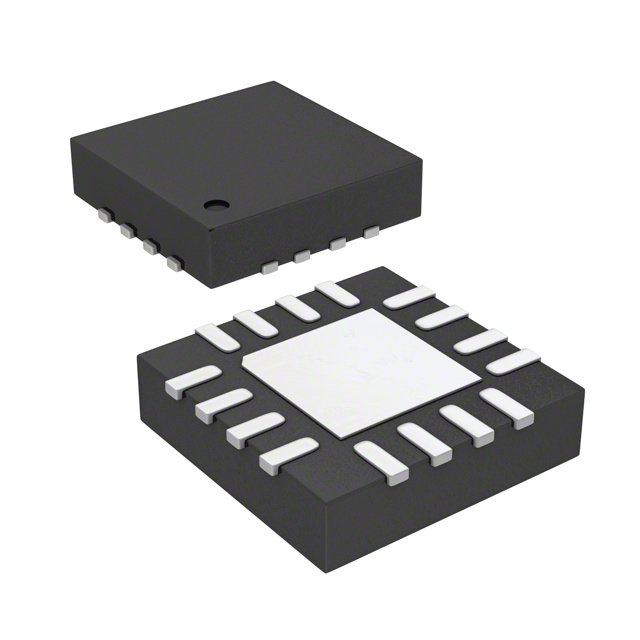

The MAAD-011021-TR0500 is a digital RF attenuator manufactured by MACOM Technology Solutions. It operates within a frequency range of 0 Hz to 30 GHz and features a total attenuation of 31.5 dB. The device utilizes a 6-bit resolution architecture with an attenuation step size of 0.5 dB. Designed for high-frequency applications, it maintains a system impedance of 50 ohms. The component is housed in a compact 16-pin PQFN exposed pad package, suitable for surface-mount technology. It supports operation across a temperature range from -40°C to +85°C.

Feature Summary

• Provides precise digital control over signal attenuation levels across a wide bandwidth.
• Integrates high-speed switching capabilities suitable for millimeter-wave frequencies.
• Features a compact leadless package design optimized for dense PCB layouts.

Applications

• Phased array antenna systems
• Test and measurement equipment
• Wireless communication infrastructure

Procurement Notes

Verify the specific ordering suffix against official MACOM documentation to ensure correct packaging configuration. Confirm that the requested variant matches the required pinout and thermal pad specifications for your PCB design. Cross-reference the datasheet revision date to ensure compatibility with current manufacturing standards. Ensure supply chain sources provide authentic components with traceable origin records.

Selection Notes

Select this component when designing circuits requiring wideband attenuation up to 30 GHz. Consider the 6-bit resolution for fine-grained control needs. Evaluate the PQFN-16 footprint against available board space constraints. Assess thermal management requirements given the operating temperature limits and power dissipation characteristics inherent to silicon-based RF attenuators.

Part Context

This part belongs to MACOM's portfolio of digital attenuators designed for RF and microwave applications. It complements other devices in the series offering varying bit resolutions and frequency ranges. The product line targets industries requiring reliable signal conditioning in compact form factors. It serves as a key component in modern wireless systems demanding high precision and stability.

Replacement Considerations

Consult official MACOM substitution guides for compatible alternatives. Verify electrical parameter equivalence before swapping components. Check package dimensions and pin assignments for mechanical compatibility. Review thermal performance data to ensure similar heat dissipation capabilities in the target application.
