Product Detailed Parameters
- Description：TRANCEIVER,LO,24GHZ,ROHS COMPLIA
- Series：-
- Mfr：MACOM Technology Solutions
- Package：Tray
- Function：RF Oscillator
- Frequency：24.12GHz ~ 24.17GHz
- RF Type：General Purpose
- Secondary Attributes：-
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

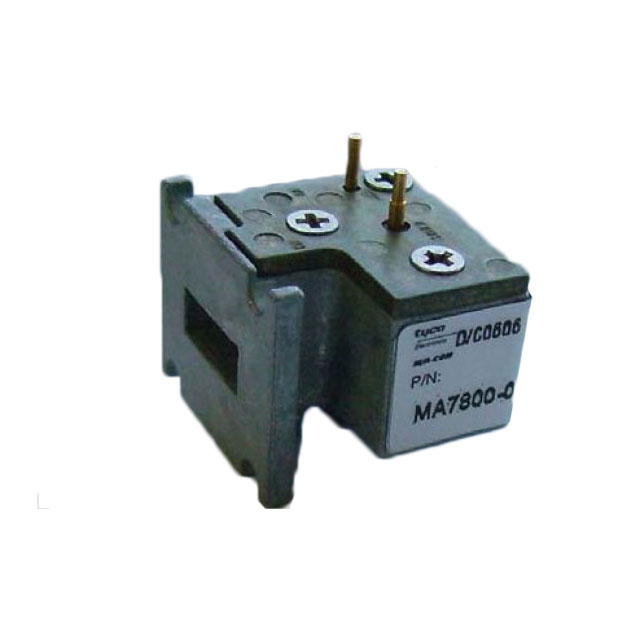

The MACS-007800-0M1R00 is a K-Band local oscillator module manufactured by MACOM Technology Solutions. It integrates a Gunn diode oscillator into a die-cast waveguide package, ensuring robust performance in high-frequency applications. The component is RoHS compliant and designed for stable signal generation within the K-Band spectrum. This module serves as a critical source for local oscillation in radar and communication systems requiring precise frequency stability.
Feature Summary
- Integrates a Gunn diode oscillator directly into a die-cast waveguide package for structural integrity.
- Designed specifically for K-Band local oscillation requirements.
- Complies with RoHS standards for environmental safety.
Applications
- Radar systems
- Satellite communications
- Test and measurement instrumentation
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with your system's frequency and interface requirements. Confirm that the die-cast waveguide package aligns with your mechanical constraints. Check for updated datasheets or design changes prior to final procurement to ensure the latest revision meets your technical specifications.
Selection Notes
Select this module when a compact, high-stability K-Band local oscillator is required. The waveguide package offers superior thermal and mechanical performance compared to standard IC packages. Consider the integration complexity of waveguide interfaces versus coaxial alternatives during the design phase.
Part Context
This part belongs to MACOM’s portfolio of RF modules and transceivers. It is distinct from their discrete components or other module families. The product line focuses on providing complete solutions for high-frequency applications, reducing the need for external circuitry.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires verification of electrical parameters and mechanical fit with existing designs.
