MACS-007800-0M1RL9

Overview

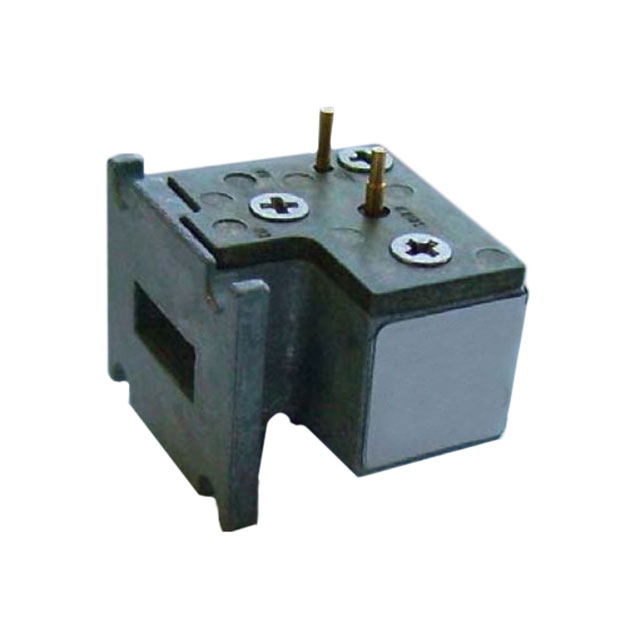

The MACS-007800-0M1RL9 is a K-Band local oscillator module manufactured by MACOM Technology Solutions. It operates at a center frequency of 24 GHz and utilizes a Gunn diode for signal generation. The component is designed as an inexpensive, low-power transmitter suitable for continuous wave (CW) applications. It is RoHS compliant and intended for integration into radar systems requiring stable local oscillator sources.

Feature Summary

• Utilizes a Gunn diode for K-Band local oscillator generation
• Designed as a low-power transmitter solution
• RoHS compliant construction

Applications

• CW Doppler radar systems
• Speed radars
• Traffic monitoring sensors

Procurement Notes

Verify the specific suffix designation to ensure compatibility with system requirements. Confirm that the Gunn diode technology aligns with the phase noise and stability needs of the target application. Ensure environmental specifications meet operational standards for the intended deployment environment.

Selection Notes

Select this component for applications requiring a cost-effective 24 GHz source. Consider the low-power profile when designing power supply constraints. Evaluate the CW operation mode against modulation requirements if complex signaling is needed beyond simple Doppler detection.

Part Context

This part belongs to MACOM's portfolio of RF modules and local oscillators. It supports industrial, scientific, and medical applications, including test instrumentation and machine-to-machine communications. The device contributes to solutions that maximize spectral efficiency and reliability in ground-based platforms.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
