MAF0603GWY551AT000

Chip Ferrite Bead Overview

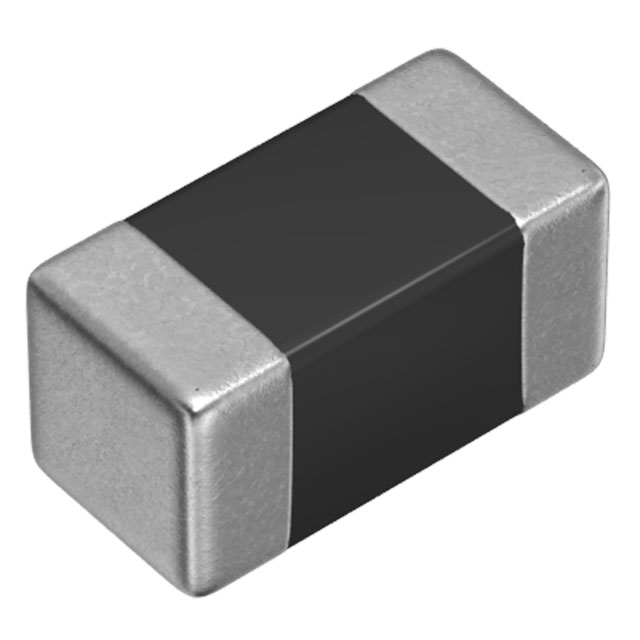

The TDK MAF0603GWY551AT000 is a surface-mount noise suppression filter designed for audio lines. It features an impedance of 60 Ohms at 100 MHz and supports a maximum DC current of 125 mA with a maximum DC resistance of 2.2 Ohms. The component utilizes a 0201 (0603 metric) package measuring 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height.

Chip Ferrite Bead Feature Summary

• Engineered specifically as an anti-noise component for audio lines to minimize signal distortion during insertion.

Chip Ferrite Bead Applications

• Noise suppression in small-sized equipment

Chip Ferrite Bead Procurement Notes

Verify the specific impedance value and current rating against the official TDK datasheet for the MAF0603GWY series before integration. Confirm that the 0201 package dimensions align with the target PCB footprint requirements. Ensure the selected variant matches the required electrical characteristics for the specific audio line application.

Chip Ferrite Bead Selection Notes

Select this component when space constraints require a 0201 footprint for audio line filtering. Consider its low distortion characteristics if preserving audio fidelity is critical. Verify that the 125 mA current rating meets the circuit's operational demands without saturation.

Chip Ferrite Bead Part Context

This part belongs to the TDK MAF0603GWY series of ultra-compact noise suppression filters. The series is characterized by its extremely small size, which allows for integration into highly compact electronic devices such as smartwatches and true wireless stereo earbuds where board real estate is limited.

Chip Ferrite Bead Replacement Considerations

Consult the official TDK replacement guide for verified substitutes within the MAF series. Do not assume cross-compatibility with other manufacturers' 0201 ferrite beads due to potential differences in impedance profiles and material properties.
