MAF1005FRQ601AT000

Chip Ferrite Bead Overview

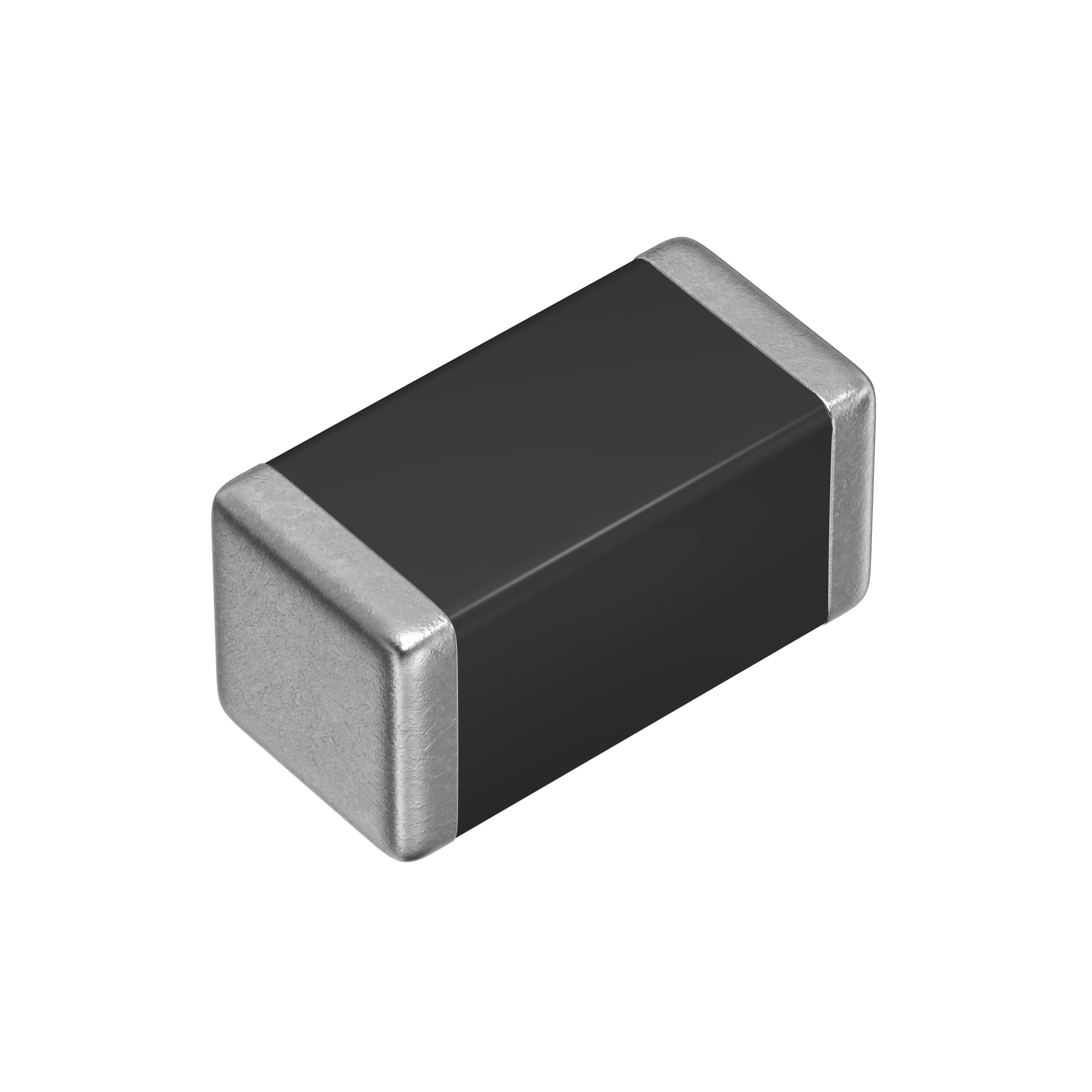

The MAF1005FRQ601AT000 is a surface-mount noise suppression filter manufactured by TDK Corporation. It features a compact 1005 (0402) metric package size, designed for high-density circuit board layouts. The component provides an impedance of 600 Ohms at 100 MHz with a maximum DC resistance of 1 Ohm. It supports a rated current of 280 mA and operates within a standard temperature range suitable for consumer electronics applications.

Chip Ferrite Bead Feature Summary

• Compact 1005 form factor optimized for space-constrained designs
• High impedance performance effective for EMI noise suppression
• Low DC resistance minimizes signal loss in power lines

Chip Ferrite Bead Applications

• Noise filtering for audio line circuits
• EMI suppression in portable consumer devices
• Signal integrity protection in data processing equipment

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'Q' against the official TDK datasheet to confirm tape and reel packaging specifications. Ensure the selected variant matches the required impedance tolerance and current rating for the target application environment before finalizing procurement orders.

Chip Ferrite Bead Selection Notes

Select this component when a small footprint is critical for noise control. The 600 Ohm impedance level targets frequencies around 100 MHz. Verify that the 280 mA current rating exceeds the maximum operating current of the protected circuit to prevent saturation or overheating during normal operation.

Chip Ferrite Bead Part Context

This part belongs to the MAF1005FR series, a family of noise suppression filters launched by TDK for audio and general-purpose applications. The series emphasizes miniaturization while maintaining effective electromagnetic interference reduction capabilities for modern compact electronic systems.

Chip Ferrite Bead Replacement Considerations

Compatible substitutes include other 1005 package ferrite beads with similar 600 Ohm impedance and current ratings. Verify pin compatibility and thermal characteristics before swapping manufacturers.
