MAF1005PAD120CT000

Chip Ferrite Bead Overview

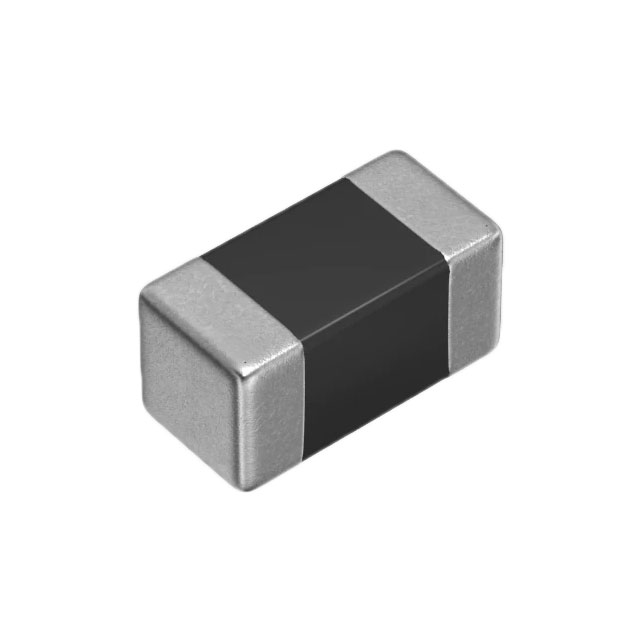

The MAF1005PAD120CT000 is a single-channel noise suppression filter manufactured by TDK Corporation, belonging to the MAF-P series. It utilizes ferrite bead technology housed in a compact 0402 (1005 metric) surface-mount package with dimensions of 1.0 mm length, 0.5 mm width, and 0.5 mm height. The component exhibits an impedance of 12 Ohms at a test frequency of 900 MHz and supports a maximum DC current of 6 A. Its maximum DC resistance is specified as 9 mOhms. The device operates within a temperature range of -55°C to +125°C.

Chip Ferrite Bead Feature Summary

• Engineered for cellular band noise suppression applications
• Utilizes proprietary low-distortion ferrite material for high-quality signal integrity
• Designed for efficient radiation noise reduction in audio and power lines

Chip Ferrite Bead Applications

• Cellular band noise suppression
• Power line filtering
• Audio line noise reduction

Chip Ferrite Bead Procurement Notes

Verify the complete part number including suffixes against official TDK documentation to ensure correct impedance and current ratings. Confirm RoHS compliance status and moisture sensitivity level requirements prior to ordering. Cross-reference datasheet specifications for thermal performance under load conditions to validate suitability for the target application environment.

Chip Ferrite Bead Selection Notes

Select this component when high current handling capability up to 6 A is required in a minimal footprint. The 12 Ohm impedance at 900 MHz targets specific cellular frequency bands. Ensure the PCB layout accommodates the 0402 package dimensions and that the operating temperature range aligns with system constraints.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the MAF series, which includes components designed for audio and power line noise suppression. The MAF-P variant specifically addresses cellular band interference. These filters are often used alongside chip beads and varistors to provide comprehensive EMI protection and ESD shielding in mobile and consumer electronics.

Chip Ferrite Bead Replacement Considerations

Consult official substitution guides for equivalent ferrite beads with matching impedance and current ratings. Verify package compatibility and thermal characteristics before replacing.
