MAF2520ASS600CT000

Chip Ferrite Bead Overview

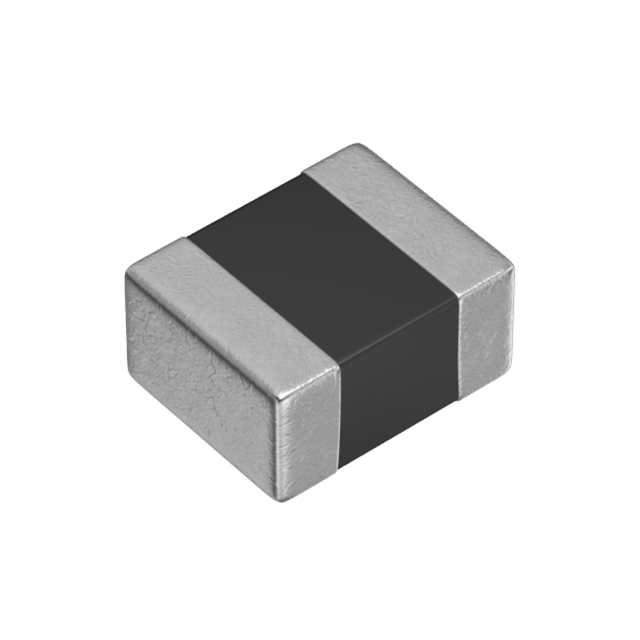

The MAF2520ASS600CT000 is a surface-mount ferrite bead from the TDK MAF series, designed for noise suppression in electronic circuits. It features a 1008 (2520 metric) package with dimensions of 2.5 mm length, 2 mm width, and 0.85 mm height. The component provides an impedance of 60 Ohms at a test frequency of 1 MHz. It supports a maximum DC current of 700 mA and has a maximum DC resistance of 364 mOhms. The device operates within a temperature range of -40°C to +125°C.

Chip Ferrite Bead Feature Summary

• Provides effective noise suppression for power supply lines and digital switching transients
• Compact 1008 surface-mount form factor suitable for space-constrained designs
• Capable of handling continuous DC currents up to 700 mA

Chip Ferrite Bead Applications

• Noise filtering in portable electronic devices
• Signal integrity management in high-speed digital circuits
• Power line conditioning in embedded systems

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'CT' corresponds to Cut Tape packaging when ordering, as standard reel quantities may differ. Confirm RoHS3 compliance status with the manufacturer or authorized distributor prior to final procurement. Ensure the selected variant matches the required impedance tolerance and current rating for the target application circuit.

Chip Ferrite Bead Selection Notes

Select this component when a 60 Ohm impedance at 1 MHz is required for noise attenuation. The 700 mA current rating must exceed the maximum expected DC load current to prevent saturation. The 1008 package size should be evaluated against available PCB footprint constraints. Verify that the operating temperature range meets the environmental requirements of the end-use device.

Chip Ferrite Bead Part Context

This part belongs to the TDK MAF series of multilayer ferrite beads. These components are engineered for high-density mounting on printed circuit boards. The series offers various impedance values and current ratings to address different noise suppression needs across consumer, industrial, and automotive electronics applications.

Chip Ferrite Bead Replacement Considerations

Cross-reference with other TDK MAF series parts sharing the 1008 package and 60 Ohm impedance. Verify equivalent current handling and DC resistance specifications before substituting. Ensure mechanical dimensions and terminal configurations match the existing board layout.
