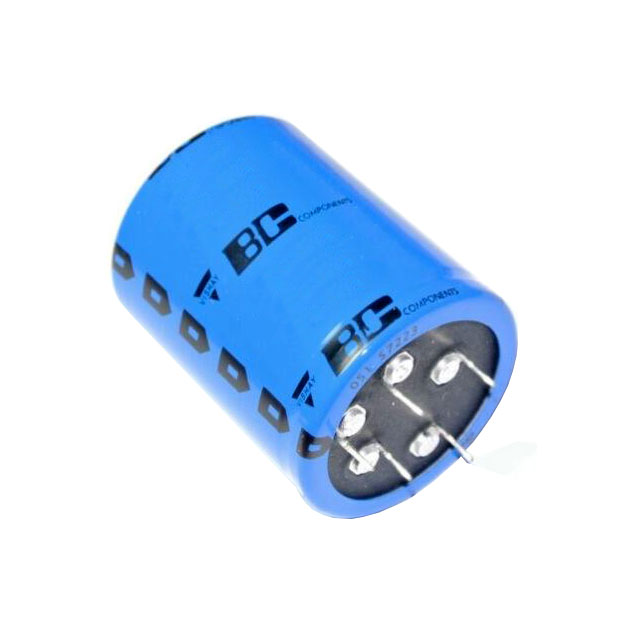

MAL205044223E3

MAL205044223E3 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Vishay Beyschlag/Draloric/BC Components. Its product description is CAP ALUM 22000UF 10V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MAL205044223E3

• Description：CAP ALUM 22000UF 10V RADIAL TH
• Series：050 PED-PW
• Mfr：Vishay Beyschlag/Draloric/BC Components
• Package：Tape & Box (TB)
• Capacitance：22000 µF
• Tolerance：-10%, +30%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：36mOhm @ 100Hz
• Lifetime @ Temp.：15000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：4.2 A @ 100 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：0.787" (20.00mm)
• Size / Dimension：1.575" Dia (40.00mm)
• Height - Seated (Max)：1.772" (45.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can - 5 Lead
• Impedance：27 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for MAL205044223E3
