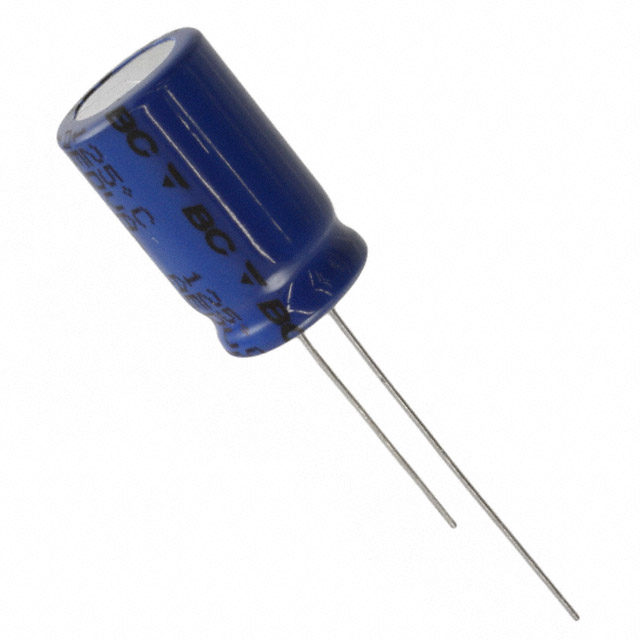

MAL214235332E3

MAL214235332E3 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Vishay Beyschlag/Draloric/BC Components. Its product description is CAP ALUM 3300UF 20% 16V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MAL214235332E3

• Description：CAP ALUM 3300UF 20% 16V RADIAL
• Series：142 RHS
• Mfr：Vishay Beyschlag/Draloric/BC Components
• Package：Tape & Box (TB)
• Capacitance：3300 µF
• Tolerance：±20%
• Voltage - Rated：16 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2500 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：-
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：1.755 A @ 10 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.492" Dia (12.50mm)
• Height - Seated (Max)：1.063" (27.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for MAL214235332E3
