MAL214254331E3

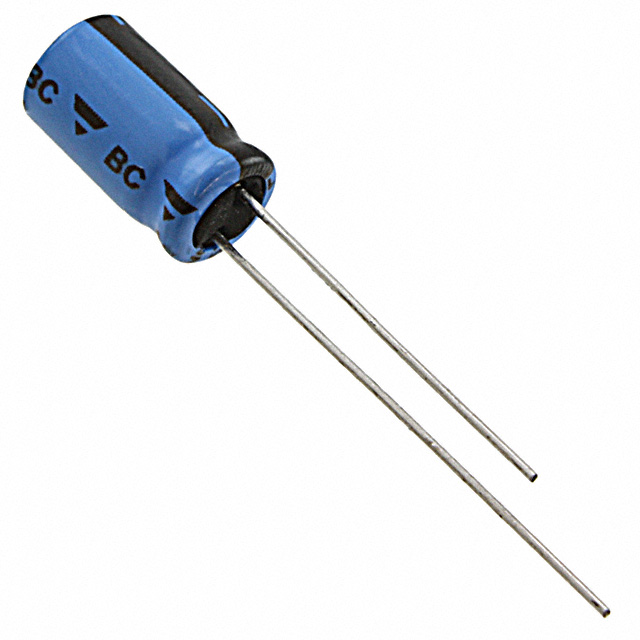

MAL214254331E3 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Vishay Beyschlag/Draloric/BC Components. Its product description is CAP ALUM 330UF 20% 10V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MAL214254331E3

• Description：CAP ALUM 330UF 20% 10V RADIAL TH
• Series：142 RHS
• Mfr：Vishay Beyschlag/Draloric/BC Components
• Package：Bulk
• Capacitance：330 µF
• Tolerance：±20%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2500 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：-
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：270 mA @ 10 kHz
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.492" (12.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for MAL214254331E3
