MAS0806021R5

Overview

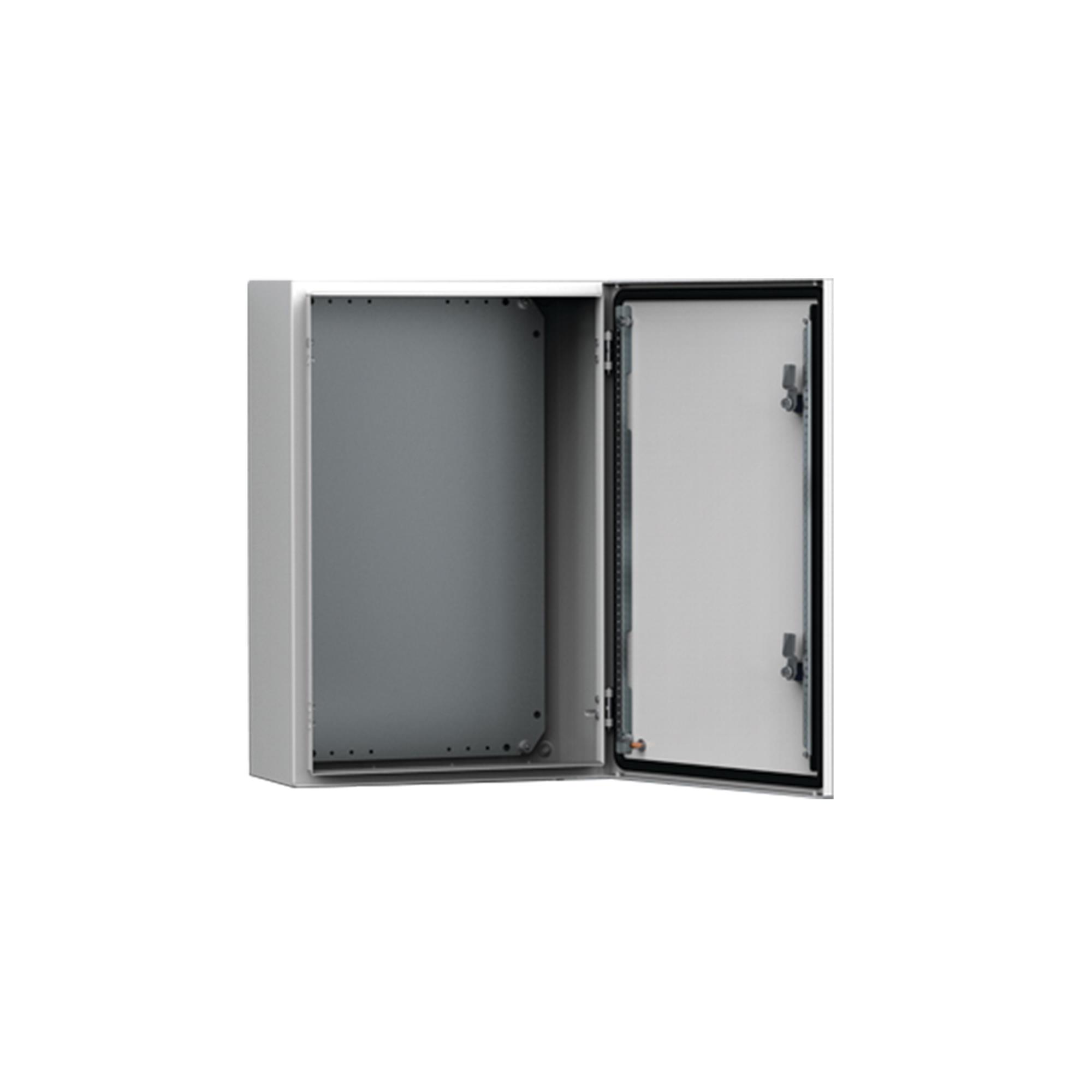

The MAS0806021R5 is a wall-mount metal enclosure manufactured by Hoffman Enclosures, Inc. Constructed from mild steel with a powder-coated surface finish, it measures 800 mm in height, 600 mm in width, and 210 mm in depth. The unit provides an IP66 ingress protection rating and supports a load capacity of 163 kg. It is designed for industrial environments requiring robust physical protection for electrical components.

Feature Summary

• Constructed from mild steel with a durable powder-coated finish
• Provides IP66 rated protection against dust and water jets
• Supports a maximum load capacity of 163 kg
• Designed for single-door wall mounting applications

Applications

• Industrial automation control panels
• Electrical equipment housing in harsh environments
• Wall-mounted distribution units
• Infrastructure protection for sensitive electronics

Procurement Notes

Verify the specific dimensional requirements (800x600x210mm) against the installation space before ordering. Confirm that the IP66 rating meets the environmental exposure standards of the deployment site. Ensure the 163 kg load capacity is sufficient for the intended internal components. Check for any required accessories such as hinges or locks not included in the base unit description.

Selection Notes

Select this model when a rigid, high-load-capacity enclosure is required for wall mounting. The mild steel construction offers superior mechanical strength compared to plastic alternatives. The IP66 rating makes it suitable for outdoor or washdown areas where higher protection than standard indoor enclosures is necessary. Consider the weight and dimensions during structural planning.

Part Context

This part belongs to the MAS series of wall-mount enclosures from Hoffman Enclosures, now part of nVent. The series is characterized by its use of mild steel and standardized dimensions. It serves as a protective housing for electrical and electronic components in various industrial sectors, emphasizing durability and environmental sealing.

Replacement Considerations

Direct substitutes may include other models within the MAS series with different dimensions but similar construction. Verify compatibility with existing mounting hardware and internal component layouts when considering alternative part numbers.
