MAT10020

Overview

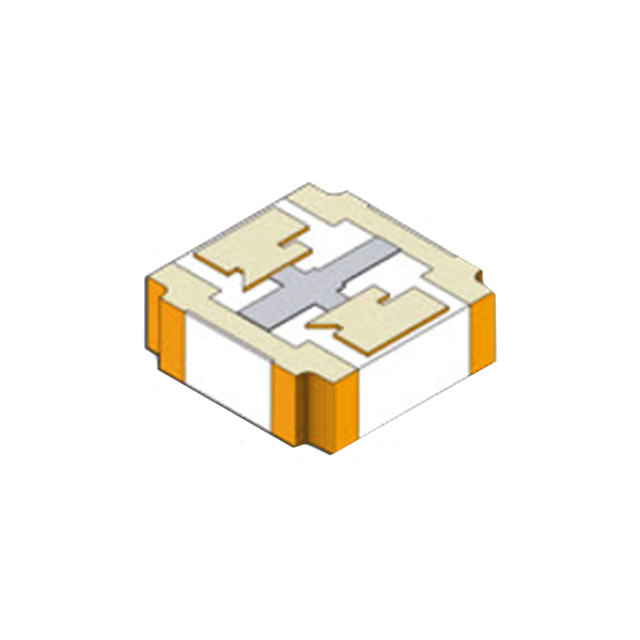

The MAT10020 is a GaAs passive RF attenuator die manufactured by MACOM Technology Solutions. It provides an attenuation value of 2 dB with a frequency range spanning from DC to 20 GHz. The component supports medium power handling of 2W continuous wave (CW). Key electrical specifications include a flat response across the operational bandwidth, return loss greater than 18 dB from DC to 12 GHz, and return loss exceeding 16 dB from 13 to 20 GHz.

Feature Summary

• Utilizes GaAs technology for robust RF performance
• Delivers consistent attenuation from DC to 20 GHz
• Supports 2W continuous wave power handling

Applications

• RF signal conditioning in communication systems
• Test and measurement equipment calibration
• Microwave circuit design requiring precise attenuation

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm datasheet compliance for critical parameters such as attenuation tolerance and power handling limits. Ensure proper ESD handling procedures are followed during assembly due to the bare die package configuration.

Selection Notes

Select this component when a fixed 2 dB attenuation is required within a wideband DC to 20 GHz application. Consider the 2W CW power rating for medium-power scenarios. Evaluate the bare die format against available mounting infrastructure and thermal management requirements for the specific system design.

Part Context

This part belongs to the MAT10yyy series of RF attenuators from MACOM. The series offers various attenuation values while maintaining similar form factors and performance characteristics. These components are designed for integration into high-frequency circuits where stable attenuation and broad bandwidth are essential.

Replacement Considerations

Other parts in the MAT100xx series offer different attenuation values but share similar physical and electrical profiles.
