MAX11014BGTM+T

Overview

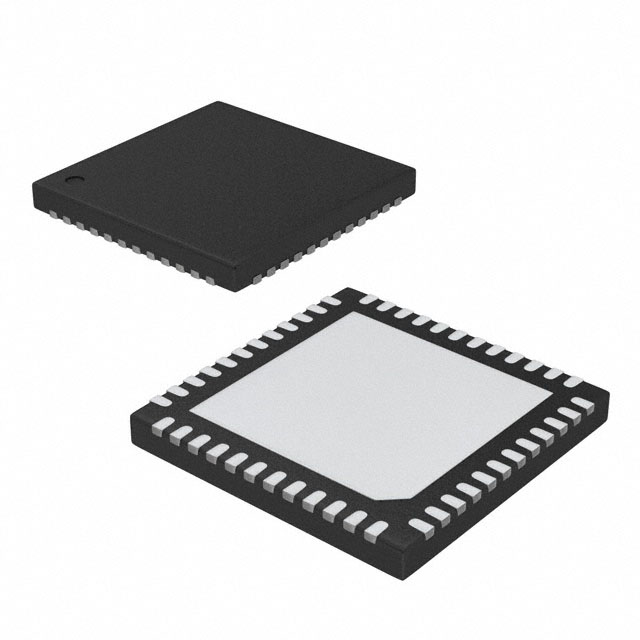

The MAX11014BGTM+T is an RF IC classified under RF Misc ICs and Modules, manufactured by Analog Devices Inc./Maxim Integrated. It functions as an RF MESFET amplifier housed in a 48-TQFN surface-mount package with dimensions of 7mm x 7mm. The device operates with a supply current of 2.8mA and integrates a 12-bit DAC controller for MESFET gate voltage regulation. Designed for mobile phone applications, it supports automatic RF amplification tasks within low-power signal processing environments.

Feature Summary

• Integrates a 12-bit DAC controller specifically for precise MESFET gate voltage management
• Designed for low-power operation suitable for mobile communication devices
• Provides automatic RF amplification capabilities within a compact surface-mount package

Applications

• Mobile phone RF front-end modules
• Automatic RF amplifier circuits
• Low-power signal processing systems

Procurement Notes

Verify the exact datasheet specifications directly from Analog Devices or Maxim Integrated documentation before integration. Confirm that the 48-TQFN package footprint matches your PCB layout requirements. Ensure compatibility with the required 2.8mA supply current constraints in your design. Cross-reference the part number MAX11014BGTM+T with official manufacturer lists to confirm active status and availability.

Selection Notes

Select this component when designing RF front-ends for mobile phones requiring integrated gate voltage control. The built-in 12-bit DAC simplifies biasing networks compared to discrete solutions. Consider the 48-TQFN package size for space-constrained layouts. Evaluate the 2.8mA current consumption against system power budgets for battery-operated devices.

Part Context

This part belongs to the MAX11014 series of RF miscellaneous ICs. It is produced by Analog Devices Inc., which acquired Maxim Integrated. The component is categorized alongside other RF wireless misc components and modules. It serves as a specialized amplifier solution distinct from general-purpose operational amplifiers or standard transceivers.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official distributor databases for cross-references.
