MAX15106CGWP+

Voltage Regulators - DC DC Switching Regulators Overview

The MAX15106CGWP+ is a high-efficiency, synchronous step-down DC-DC converter manufactured by Analog Devices (Maxim Integrated). It integrates two N-channel power MOSFETs and operates from an input voltage range of 2.7V to 5.5V. The device supports adjustable output voltages down to 0.6V with a maximum output current capability of 3A. Key electrical parameters include a switching frequency selectable between 1MHz and 3.5MHz, a quiescent current of 45µA in active mode, and a shutdown supply current of 1µA. It features cycle-by-cycle current limit protection and thermal shutdown.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrated synchronous rectification with dual N-channel MOSFETs for high efficiency
• Adjustable switching frequency selection between 1MHz and 3.5MHz
• Low quiescent current operation for improved battery life
• Built-in cycle-by-cycle current limit and thermal shutdown protection

Voltage Regulators - DC DC Switching Regulators Applications

• Portable consumer electronics requiring efficient power management
• Battery-powered devices needing low standby current
• Embedded systems with single-supply requirements
• Industrial control modules operating within standard voltage ranges

Voltage Regulators - DC DC Switching Regulators Procurement Notes

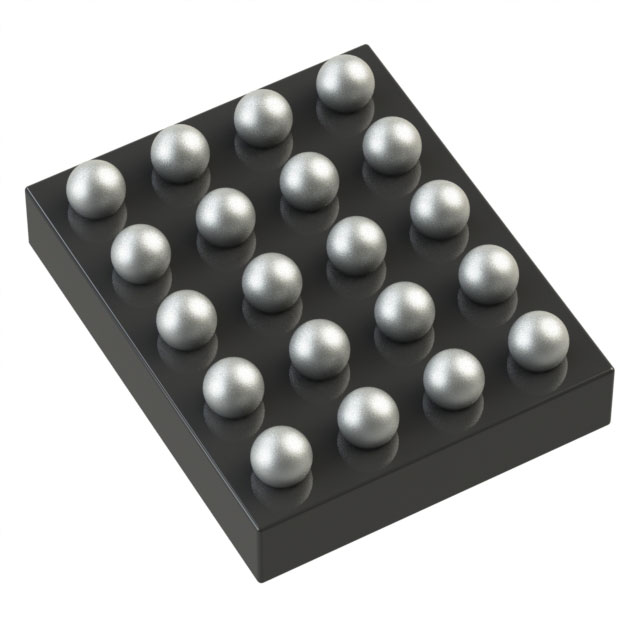

Verify the specific suffix 'C' indicates commercial temperature grade (-40°C to +85°C) and 'W' denotes the WLP package. Confirm RoHS compliance status via the official datasheet. Check for obsolescence notices as Maxim products may transition to ADI part numbers. Ensure ESD handling protocols are followed during assembly due to the fine-pitch wafer-level package.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact solution is required for converting 3.3V or 5V rails to lower voltages like 1.8V or 1.2V. The choice depends on the need for integrated inductors being avoided and space constraints favoring WLP packaging over QFN. Consider the trade-off between higher switching frequencies for smaller passive components versus increased EMI noise.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MAX15106 family of synchronous buck converters designed for portable applications. It replaces older discrete solutions or non-synchronous regulators by offering higher efficiency through integrated MOSFETs. The device is part of Maxim's portfolio optimized for mobile phones, PDAs, and other handheld devices where board space and power consumption are critical design factors.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Check for direct pin-compatible upgrades within the ADI portfolio such as the MAX15107 series if different current ratings are needed. Verify if newer generations like the MAX2009x series offer improved efficiency or additional features while maintaining the same footprint.
