MAX16193ATA00/VY+T

Supervisors Overview

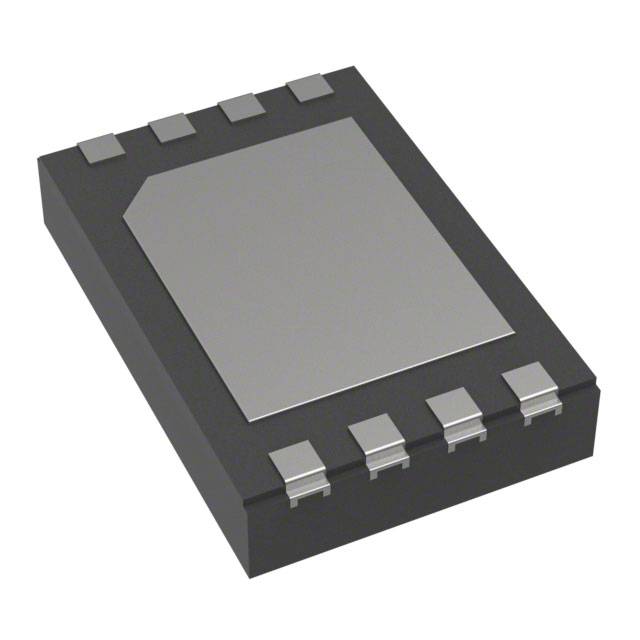

The MAX16193ATA00/VY+T is a supervisory circuit featuring dual voltage monitors with adjustable thresholds. It offers high accuracy of 0.3% for window monitoring and supports open-drain or push-pull outputs. The device operates within a temperature range of -40°C to +125°C and is housed in an 8-TDFN-CU (2x3 mm) package.

Supervisors Feature Summary

• Dual-channel supervision with adjustable voltage thresholds
• High precision 0.3% accuracy for window monitoring applications
• Configurable output drivers supporting both open-drain and push-pull modes

Supervisors Applications

• Automotive electronic system monitoring
• Industrial control board supervision
• Portable device power management

Supervisors Procurement Notes

Verify the specific suffix 'VY+T' against official Analog Devices documentation to confirm tape-and-reel packaging and lead-free status. Ensure compatibility with the required operating temperature range and output configuration before procurement, as minor suffix variations may affect physical dimensions or environmental compliance.

Supervisors Selection Notes

Select this component when precise dual-voltage monitoring is required with minimal footprint. The 0.3% accuracy suits sensitive automotive and industrial applications. Consider the TDFN package size and thermal performance for space-constrained designs requiring robust supervision capabilities.

Supervisors Part Context

This part belongs to the Maxim Integrated supervisory circuit family, designed for reliable voltage monitoring in harsh environments. It complements other PMIC solutions by providing dedicated window monitoring functions with configurable outputs for system integrity assurance.

Supervisors FAQ

What is the accuracy specification for the voltage monitoring?

The device provides a high accuracy of 0.3% for window voltage monitoring.

Can the output driver type be configured?

Yes, the MAX16193 supports both open-drain and push-pull output configurations.
