MAX16993AGJH/VY+

$6.07

Description：IC REG BUCK ADJ 3A TRPL 32QFN
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tray

SKU:5365714032c0 Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MAX16993AGJH/VY+ is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC REG BUCK ADJ 3A TRPL 32QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MAX16993AGJH/VY+

Description：IC REG BUCK ADJ 3A TRPL 32QFN
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tray
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable (Programmable)
Number of Outputs：3
Voltage - Input (Min)：3.5V
Voltage - Input (Max)：36V
Voltage - Output (Min/Fixed)：0.8V
Voltage - Output (Max)：3.95V
Current - Output：3A
Frequency - Switching：2.1MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

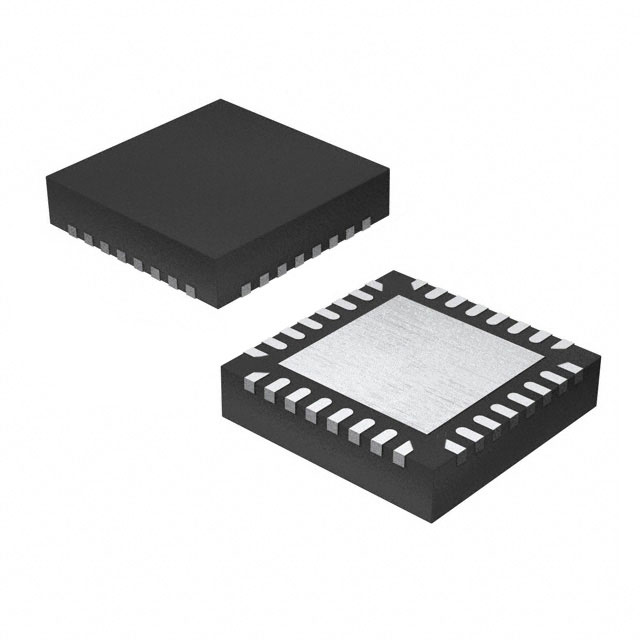

Package / Case：32-VFQFN Exposed Pad
Supplier Device Package：32-QFN (5x5)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MAX16993AGJH/VY+

MAX16993AGJH/VY+

Voltage Regulators - DC DC Switching Regulators Overview

The MAX16993AGJH/VY+ is an automotive-grade power management IC featuring three DC-DC step-down converters. It operates with an input voltage range of 3.5 V to 36 V and delivers up to 3 A per output. The device integrates dual 2.1 MHz switching regulators alongside a third adjustable or fixed output. It supports 3.3 V, 5 V, and adjustable configurations with a typical quiescent current of 30 uA. Designed for harsh environments, it functions between -40°C and +125°C and holds AEC-Q100 qualification.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates three independent buck converters within a single highly integrated package
Supports wide input voltage ranges suitable for automotive load dump conditions
Features low quiescent current operation to minimize standby power consumption
Includes thermal protection and shutdown control for system safety

Voltage Regulators - DC DC Switching Regulators Applications

Automotive infotainment systems requiring multiple regulated rails
Instrument clusters and dashboard electronics
Body control modules in passenger vehicles
Telematics units and gateway devices

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix AGJH against official Analog Devices documentation to confirm pinout and thermal pad configuration. Confirm AEC-Q100 qualification status directly from the manufacturer datasheet. Ensure compatibility with existing PCB footprints for the QFN-EP package before procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when designing automotive systems requiring three isolated step-down outputs from a single controller. It is suitable for applications needing high efficiency at 2.1 MHz switching frequencies. Consider the 36 V maximum input rating for direct battery connection scenarios without pre-regulation.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MAX16993 family of automotive PMICs designed by Maxim Integrated, now part of Analog Devices. The series targets compact power solutions for vehicle electronics. The AGJH variant specifies the particular package type and temperature grade within this product line.
