MAX20011BAFOF/VY+ is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC REG BUCK PROG 12A 17FC2QFN. Review the specifications below when checking this part for your BOM.
Voltage Regulators - DC DC Switching Regulators specifications for MAX20011BAFOF/VY+
- Description：IC REG BUCK PROG 12A 17FC2QFN
- Series：-
- Mfr：Analog Devices Inc./Maxim Integrated
- Package：Tray
- Function：Step-Down
- Output Configuration：Positive
- Topology：Buck
- Output Type：Programmable
- Number of Outputs：1
- Voltage - Input (Min)：3V
- Voltage - Input (Max)：5.5V
- Voltage - Output (Min/Fixed)：0.5V
- Voltage - Output (Max)：1.275V
- Current - Output：12A
- Frequency - Switching：1.1MHz, 2.2MHz
- Synchronous Rectifier：No
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Surface Mount, Wettable Flank

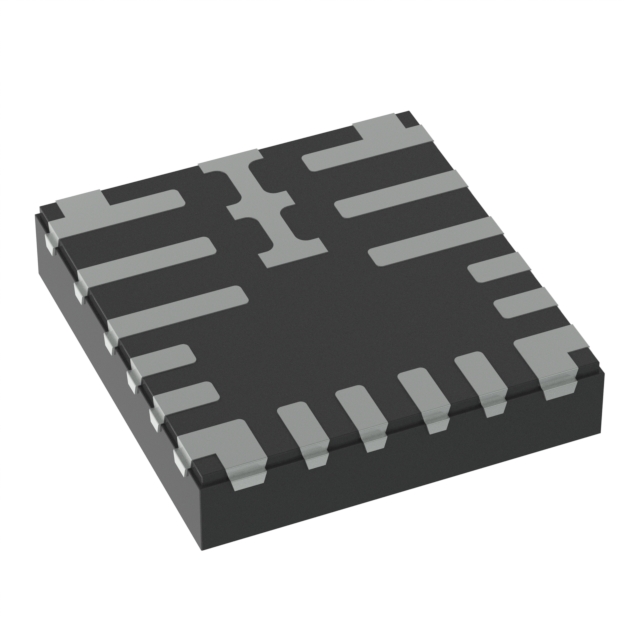

- Package / Case：17-PowerWFQFN
- Supplier Device Package：17-FC2QFN (3.5x3.75)
- Grade：-
- Qualification：-
Voltage Regulators - DC DC Switching Regulators datasheet and documents for MAX20011BAFOF/VY+
Voltage Regulators - DC DC Switching Regulators Overview
The MAX20011BAFOF/VY+ is a high-efficiency synchronous buck converter designed for automotive applications. It operates with an input voltage range of 3.0V to 5.5V and provides a peak output current capability of 16A. The device features an adjustable output voltage range from 0.5V to 1.275V, ensuring precise power delivery for sensitive loads. It maintains a tight output error of ±1.5% across line, load, and temperature variations. Packaged in a compact AFOF format, it supports point-of-load regulation.
Voltage Regulators - DC DC Switching Regulators Feature Summary
- High-efficiency synchronous buck topology optimized for automotive environments
- Robust 16A peak output current capability for demanding point-of-load applications
- Precise output regulation with ±1.5% error margin over full operating ranges
Voltage Regulators - DC DC Switching Regulators Applications
- Automotive on-board point-of-load regulation
- Post-adjustment power supply applications
- Low-voltage core or peripheral power distribution
Voltage Regulators - DC DC Switching Regulators Procurement Notes
Verify the specific suffix 'BAFOF/VY+' against official Analog Devices documentation to confirm package type and tape-and-reel specifications. Ensure compatibility with automotive-grade environmental requirements and thermal management needs before integration into final designs.
Voltage Regulators - DC DC Switching Regulators Selection Notes
Select this component when designing automotive systems requiring high transient response and significant current capacity within a narrow 3.0V to 5.5V input window. It is suitable where space constraints necessitate a compact solution while maintaining strict voltage accuracy standards.
Voltage Regulators - DC DC Switching Regulators Part Context
This part belongs to the Maxim MAX20011 family of automotive synchronous buck converters. These devices are engineered to replace traditional linear regulators in low-voltage, high-current scenarios, offering superior efficiency and reduced thermal dissipation compared to legacy solutions.
Voltage Regulators - DC DC Switching Regulators Replacement Considerations
Consult official cross-reference tools for parametrically similar parts. Verify that any substitute matches the 16A peak current, 3.0V-5.5V input range, and automotive qualification status.
