MAX20087BATPA/VY+

Power Management - Specialized Overview

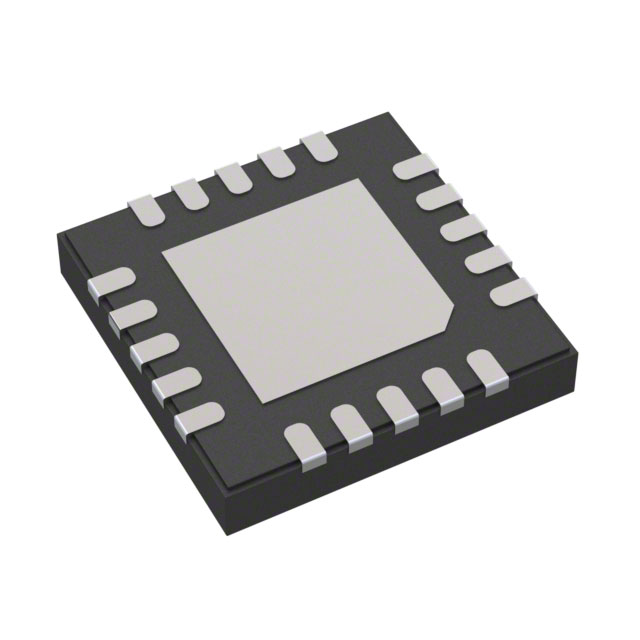

The MAX20087BATPA/VY+ is a quad camera power protector IC from Analog Devices Inc./Maxim Integrated, designed for automotive applications. It delivers up to 600mA load current to each of its four output channels. The device operates with an input voltage range of 3V to 15V and features high accuracy of ±8%. Packaged in a 20-TQFN-EP (4x4) surface-mount package, it supports a wide operating temperature range from -40°C to 125°C. The component is AEC-Q100 qualified and RoHS compliant.

Power Management - Specialized Feature Summary

• Provides individual overcurrent protection for four independent output channels
• Delivers up to 600mA load current per channel for camera and sensor applications
• Features high current regulation accuracy of ±8% for stable power delivery
• Includes thermal shutdown protection to safeguard against overheating conditions

Power Management - Specialized Applications

• Automotive camera systems
• Vehicle sensor power distribution
• Multi-channel peripheral power protection
• ADAS module power management

Power Management - Specialized Procurement Notes

Verify the specific suffix 'B' indicates the automotive grade variant when ordering. Confirm the package type matches the 20-TQFN-EP specification. Ensure the supplier provides official documentation for AEC-Q100 qualification status. Check lead times as automotive components may have longer standard delivery periods. Validate that the part number corresponds to the quad protector configuration rather than dual variants.

Power Management - Specialized Selection Notes

Select this component for applications requiring precise current regulation across multiple channels. Consider the 600mA per channel limit when sizing loads. Evaluate the 3V to 15V input range compatibility with vehicle electrical systems. Assess the need for automotive-grade reliability and wide temperature operation. Compare against dual-channel alternatives if fewer outputs are sufficient for the design.

Power Management - Specialized Part Context

The MAX20087 series includes dual and quad variants such as the MAX20086, MAX20087, MAX20088, and MAX20089. These ICs form a family of camera power protectors optimized for automotive environments. The MAX20087 specifically offers four protected outputs, distinguishing it from dual-output counterparts. All members share similar protection mechanisms and regulatory features tailored for visual sensing systems.

Power Management - Specialized Replacement Considerations

Public confirmed substitute part numbers: MAX20087ATPA/VY+T.
