MAX20097AUI/V+

LED Driver IC Overview

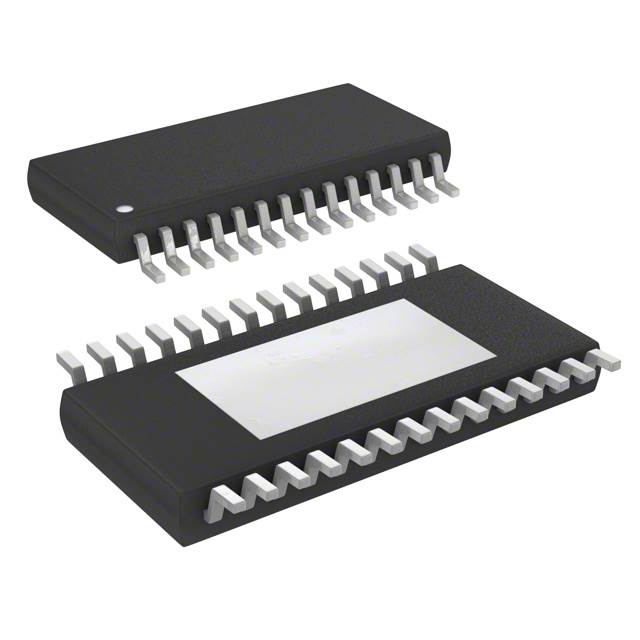

The MAX20097AUI/V+ is a dual-channel high-voltage synchronous buck LED lighting driver IC manufactured by Analog Devices Inc./Maxim Integrated. It operates with an input voltage range of 4.5V to 65V and provides regulated output voltages between 4.875V and 5.125V. The device features a switching frequency of 1MHz and supports PWM dimming for precise light control. Packaged in a 28-TSSOP-EP format, it integrates two independent channels for driving LED loads in high-voltage applications.

LED Driver IC Feature Summary

• Dual-channel architecture for independent LED control
• High-voltage synchronous buck topology
• Supports PWM dimming functionality

LED Driver IC Applications

• LED lighting systems
• High-voltage LED drivers
• Industrial illumination

LED Driver IC Procurement Notes

Verify the specific suffix and package variant against official datasheets before procurement. Confirm availability status as supply may be limited or subject to factory orders. Ensure compatibility with system voltage requirements and thermal management needs.

LED Driver IC Selection Notes

Select this component for applications requiring dual-channel high-voltage LED drive capabilities. Consider the 1MHz switching frequency for size optimization and the wide input voltage range for flexibility in power supply design. Verify thermal performance within the TSSOP-EP package constraints.

LED Driver IC Part Context

This part belongs to the MAX20096/MAX20097 family of LED lighting driver ICs. These devices are designed for high-efficiency, high-voltage LED applications, offering integrated synchronous buck converters with advanced dimming controls for professional lighting solutions.

LED Driver IC Replacement Considerations

Check for direct pin-to-pin replacements within the MAX20096 series or other Maxim Integrated high-voltage LED drivers. Verify electrical parameters such as input voltage range and switching frequency match the original design requirements.
