MAX20317EWP+T

Power Management - Specialized Overview

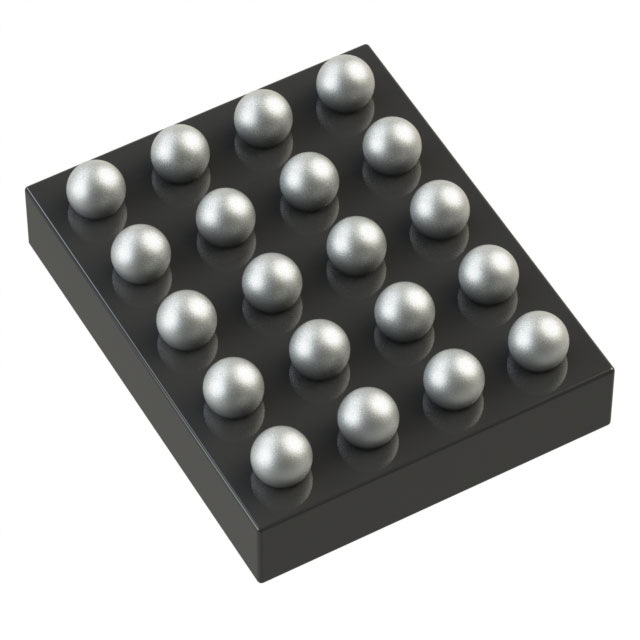

The MAX20317EWP+T is a specialized Power Management IC designed for power line communications and universal 3.5mm accessory management. It operates within an input voltage range of 3V to 5.5V. The device features a low operating supply current of 100µA and a standby current of 2µA. It is housed in a compact 20-WLP package measuring 1.62mm by 2.02mm, with a maximum power dissipation of 1.4416W.

Power Management - Specialized Feature Summary

• Integrated management for universal 3.5mm audio accessories
• Supports power line communication applications
• Low power consumption design with minimal standby current

Power Management - Specialized Applications

• Power line communications systems
• Universal 3.5mm accessory management
• Audio interface circuitry

Power Management - Specialized Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging when ordering. Confirm the exact package dimensions and thermal characteristics against the official Analog Devices datasheet prior to PCB layout finalization. Ensure compatibility with the required 3V to 5.5V supply rails for the target application environment.

Power Management - Specialized Selection Notes

Select this component for designs requiring integrated management of 3.5mm audio accessories combined with power line communication capabilities. The low supply current makes it suitable for battery-powered or energy-efficient portable devices. Verify that the 20-WLP package fits the available board space constraints.

Power Management - Specialized Part Context

This part belongs to the Maxim Integrated PMIC family, specifically targeting niche applications involving audio accessory detection and power line signaling. It integrates functions typically handled by multiple discrete components, simplifying the bill of materials for consumer electronics manufacturers.

Power Management - Specialized Replacement Considerations

No direct pin-compatible substitutes are listed in the provided documentation. Evaluate alternative PMICs from Analog Devices only if they explicitly support both 3.5mm accessory management and power line communication interfaces.

Power Management - Specialized FAQ

What is the operating supply voltage range?

The device operates with a supply voltage ranging from 3V to 5.5V.

What is the package type?

It is available in a 20-WLP (Wafer Level Package) with dimensions of 1.62mm x 2.02mm.
