MAX20334EWC+T

Power Management - Specialized Overview

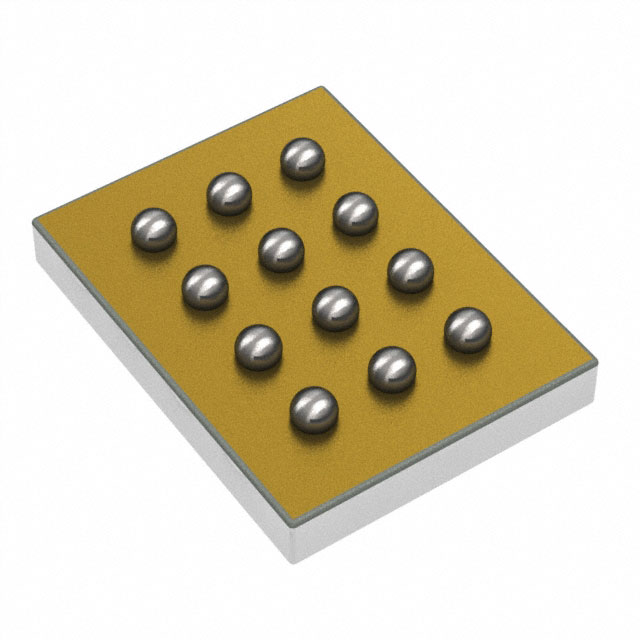

The MAX20334EWC+T is a dual single-pole double-throw (SPDT) data line switch featuring overvoltage protection, designed for portable devices. It operates within an input voltage range of 1.9 V to 5.5 V and draws a supply current of 26 µA. The device supports surface-mount installation in a WLP-12 package and functions reliably across temperatures from -40°C to +85°C.

Power Management - Specialized Feature Summary

• Integrates dual SPDT switching capability for efficient signal routing in compact designs.
• Includes built-in overvoltage protection to safeguard connected data lines from electrical stress.

Power Management - Specialized Applications

• Portable electronic equipment
• High-voltage charging solutions requiring data line short protection

Power Management - Specialized Procurement Notes

Verify the specific suffix 'EWC+T' against official Analog Devices documentation to confirm the exact pinout, tape-and-reel specifications, and RoHS compliance status. Cross-reference with the manufacturer's latest lifecycle notifications to ensure availability and confirm that no updated revisions have superseded this part number.

Power Management - Specialized Selection Notes

Select this component when designing circuits for portable devices that require robust data line switching with integrated overvoltage protection. Ensure the operating environment stays within the specified -40°C to +85°C temperature range and that the input voltage remains between 1.9 V and 5.5 V for optimal performance.

Power Management - Specialized Part Context

This part belongs to the Maxim Integrated portfolio, now part of Analog Devices Inc., specializing in power management and signal conditioning ICs. The MAX20334 series addresses the need for reliable data interface protection in mobile and wearable applications where space and power efficiency are critical constraints.

Power Management - Specialized Replacement Considerations

Consult official Analog Devices substitution guides for verified alternatives. Do not assume functional compatibility with other SPDT switches without verifying pinout and protection specifications.
