MAX20353AEWN+T

Power Management - Specialized Overview

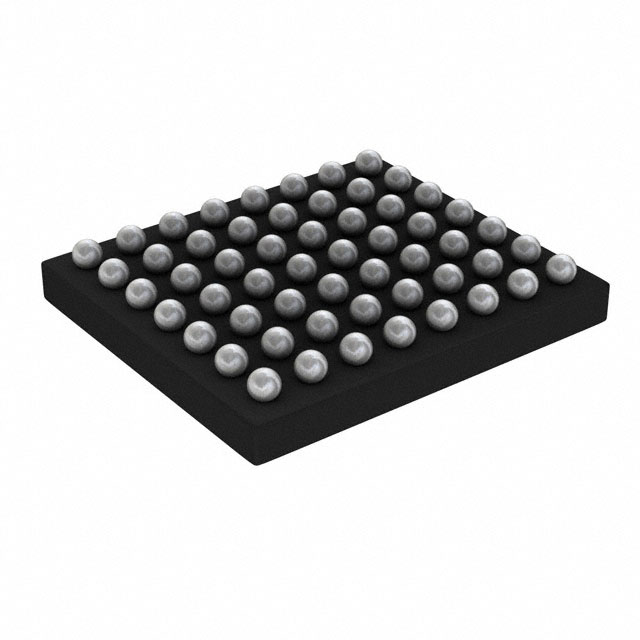

The MAX20353AEWN+T is a highly integrated, programmable power management IC designed for ultra-low-power wearable applications. It operates within a supply voltage range of 2.7V to 5.5V and features a typical supply current of 1.3µA. The device supports an operating temperature range from -40°C to 85°C. It is housed in a compact 56-WFBGA (WLBGA) package with dimensions of 4.18x3.68mm, utilizing surface-mount technology for efficient PCB integration.

Power Management - Specialized Feature Summary

• Highly integrated and programmable power management solution
• Optimized for ultra-low-power wearable applications
• Low quiescent current consumption

Power Management - Specialized Applications

• Wearable electronic devices
• Ultra-low-power system designs
• Battery-powered portable electronics

Power Management - Specialized Procurement Notes

Verify the specific suffix 'AEWN' against the manufacturer's official datasheet to confirm pinout, thermal characteristics, and material composition. Ensure the ordering part number matches the exact package variant required for your design. Cross-reference the RoHS compliance status indicated by the '+T' suffix with current regulatory requirements before finalizing procurement.

Power Management - Specialized Selection Notes

Select this component when designing systems requiring a single-chip PMIC for wearables with strict size constraints. The 56-WLP package offers significant space savings compared to discrete solutions. Consider the 2.7V minimum input voltage when selecting battery types. Verify that the 1.3µA supply current meets the standby power budget of the target application.

Power Management - Specialized Part Context

This part belongs to the MAX20353 family of specialized PMICs from Maxim Integrated, now part of Analog Devices. These components are engineered specifically for the growing market of connected wearables, providing essential power sequencing and regulation functions in a minimal footprint suitable for consumer health and fitness trackers.

Power Management - Specialized Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official replacement guide or contact technical support for qualified alternatives.
