MAX20361AEWC+

Power Management - Specialized Overview

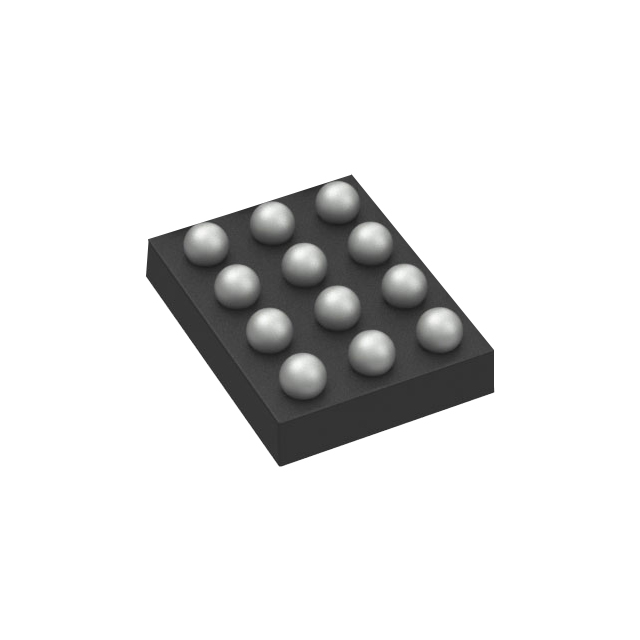

The MAX20361AEWC+ is a single-cell solar harvester and power management IC designed for energy harvesting applications. It integrates a maximum power point tracking (MPPT) controller, a battery charger, and protection circuits. The device supports lithium-ion batteries, supercapacitors, thin-film cells, or traditional capacitors. Key electrical parameters include an operating temperature range of -40°C to +85°C and a supply voltage range of 0V to 2.5V. It features a programmable charging cutoff voltage and threshold via an I2C interface. The component is housed in a 12-WLP package with dimensions of 1.63mm x 1.23mm.

Power Management - Specialized Feature Summary

• Integrates MPPT controller and battery charger for optimized energy harvesting
• Supports multiple storage media including lithium-ion batteries and supercapacitors
• Features programmable charging parameters accessible via I2C interface

Power Management - Specialized Applications

• Wireless sensor networks
• IoT devices
• Wearable electronics
• Battery-less systems

Power Management - Specialized Procurement Notes

Verify the specific suffix and package variant against the official Analog Devices datasheet to ensure compatibility with the target design requirements. Confirm that the 12-WLP package dimensions align with the PCB footprint specifications. Check for any recent lifecycle status updates or recommended replacement parts from the manufacturer before finalizing procurement plans.

Power Management - Specialized Selection Notes

Select this component for designs requiring integrated solar energy harvesting with minimal external components. Ensure the application environment falls within the specified -40°C to +85°C operating temperature range. Verify that the system architecture can accommodate the I2C interface for configuring charging thresholds and cutoff voltages appropriately.

Power Management - Specialized Part Context

This part belongs to the Maxim Integrated line of specialized power management ICs, now under Analog Devices. It is categorized under PMIC - Power Management Specialized. The MAX20361 series focuses on low-power energy harvesting solutions, distinguishing itself from general-purpose PMICs by its dedicated solar input handling and integrated charge management capabilities.

Power Management - Specialized Replacement Considerations

Consult the official Analog Devices product selection guide for verified substitute part numbers. Cross-reference pinout compatibility and electrical specifications with potential alternatives to ensure seamless integration without redesigning the surrounding circuitry.
